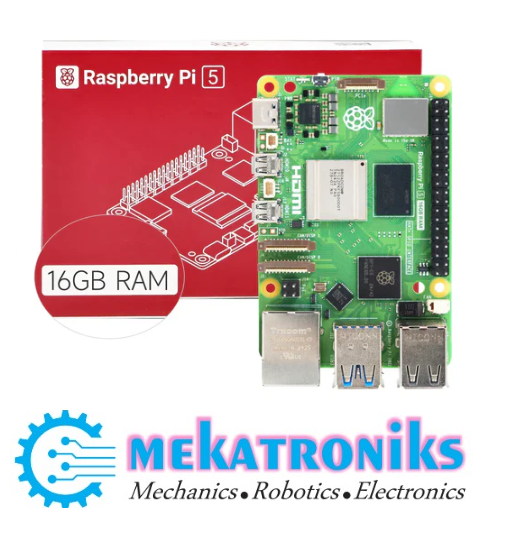

Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 16GB, this is the fastest, smoothest Raspberry Pi experience yet. Raspberry Pi 5 16GB Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same. Specification Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3 Dual 4Kp60 HDMI® display output with HDR support 4Kp60 HEVC decoder LPDDR4X-4267 SDRAM (16GB) Dual-band 802.11ac Wi-FiB, 4GB, 8GB, and ® Bluetooth 5.0 / Bluetooth Low Energy (BLE) microSD card slot, with support for high-speed SDR104 mode 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation 2 × USB 2.0 ports Gigabit Ethernet, with PoE support (requires separate PoE HAT) 2 × 4-lane MIPI camera/display transceivers PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter) 5V/5A DC power via USB-C, with Power Delivery support Raspberry Pi standard 40-pin header Real-time clock (RTC), powered from external battery Power button Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers. For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals. Category: Raspberry Pi Tags: 16GB, Raspberry pi 5
