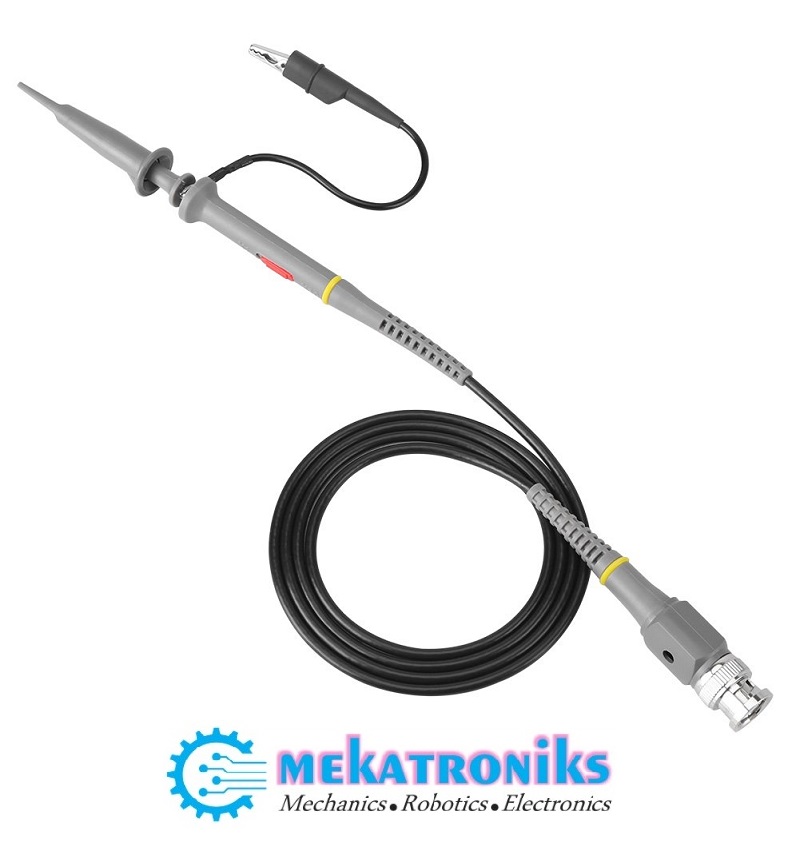

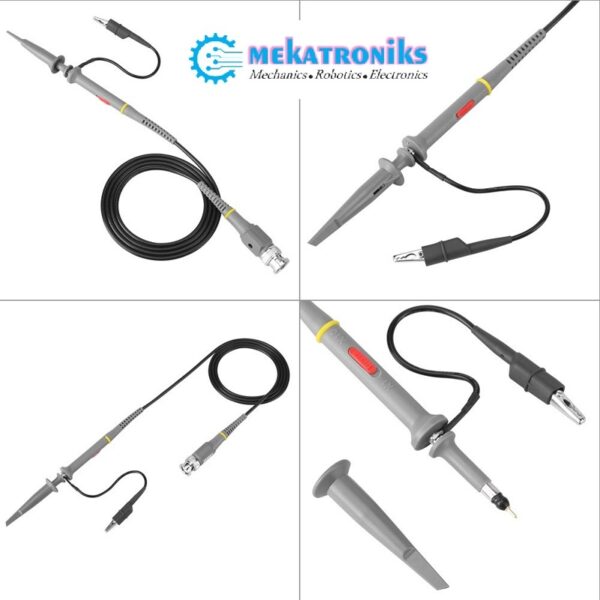

P6100 Oscilloscope Probe 100Mhz P6100 Probe in Pakistan
$42.2
$79.34

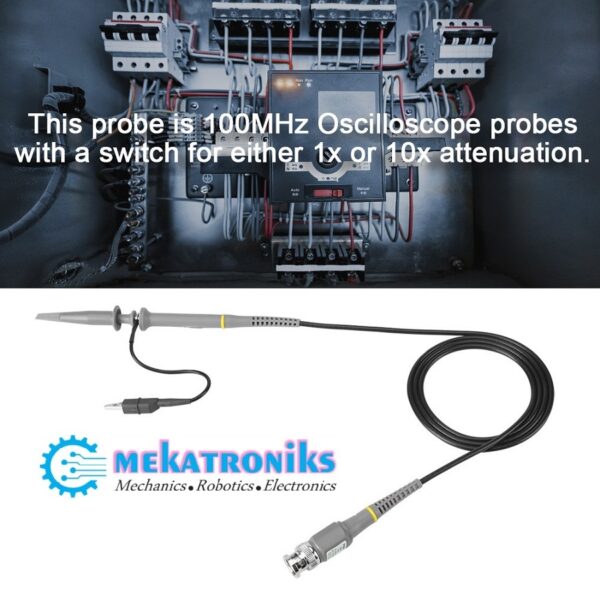

Product Description: 100Mhz Oscilloscope Probe Clip P6100 Descriptions: This probe is good oscilloscope accessories, compact size, several functions combined in one, this probe is convenient to use. This probe is 100MHz ,with a switch for either 1x or 10x attenuation, stable performance. And providing several accessories designed to make probing and measurements a simple task. Features: Features stainless steel interface, stable performance, with CE certification, IEC1010 standard ,great choice for oscilloscope probe. specification: 100Mhz Oscilloscope Probe Clip P6100 Model: P6100 Attenuation ratio: 1X/10X Input resistance: 1 M Ω / 10MΩ Input capacitance: 1X:85pF~120pF,10X:18.5pF~22.5pF Compensation range: 10pF~30pF System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz Input voltage: 1X: < 300VDC AC Vp-p,10X: < 600VDC AC Vp-p Operating temperature range: 15 ~ 75 Not working temperature range: – 20 ~ 60 Process: injection molding integration Color:grey Cable length: 120cm/47.2inch Humidity: less than 85% (relative humidity) Weight:126g 1X OR 10X: This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation, can meet your different needs. DISTINGUISHED BY COLOR : There are marking circles in different colors help to identify different channels, you can tell the channel quickly and easily. DETACHABLE HOOK TIP: The hook tip adopted detachable design, the hook is well protected by the plastic case. LOCATING SLEEVES: These oscilloscope probes have locating sleeves which ensure the stability and reliability of the tip exposed to the test point. COMPACT SIZE: Compact size, several functions combined in one, this probe is convenient to use.
