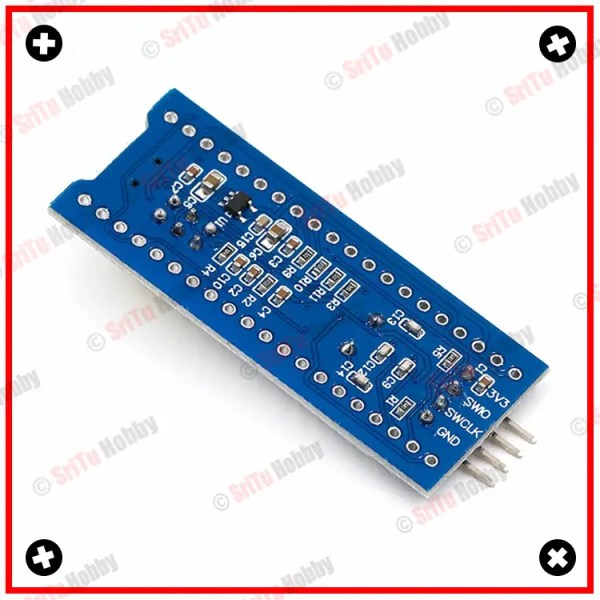

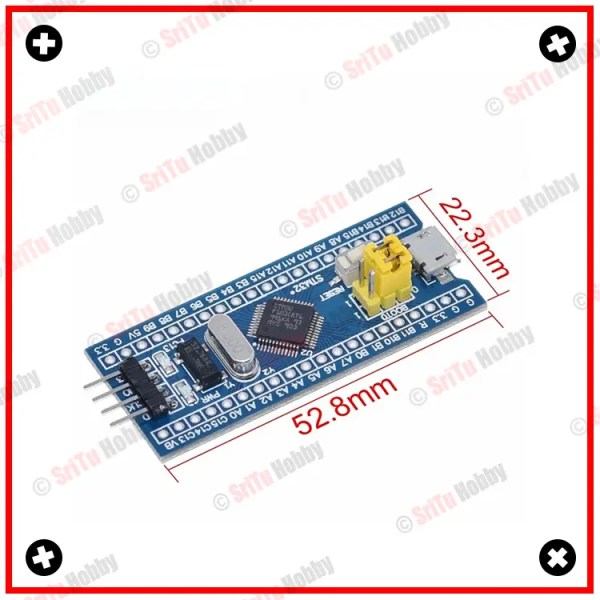

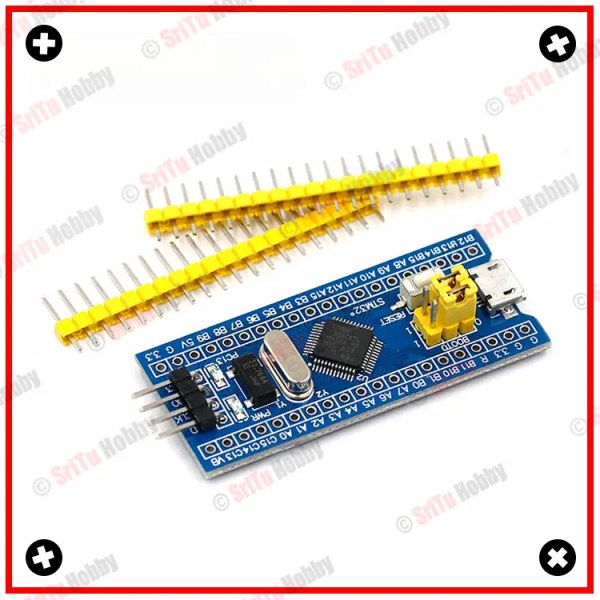

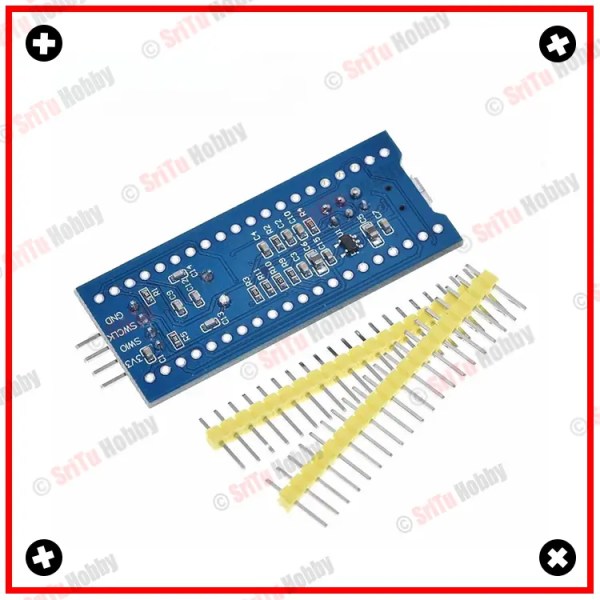

STM32F103C8T6 ARM STM32 Minimum System Development Board

Description Thank you for visiting our product page! We strive to provide you with an effortless shopping experience. Our checkout process is simple and offers various shipping options with tracking. Furthermore, we believe in maximizing the value of your purchase. On this website, you can find detailed instructions on how to use this product and explore various projects we have created using it. These resources are designed to help you make the most of your purchase. How to use this product — Click on me Free projects and tutorials — Click on me If you have any questions or encounter any issues, our dedicated customer support team is always ready to assist you. Please don’t hesitate to reach out to us through our user-friendly Contact Us page. We are committed to ensuring your complete satisfaction. Lastly, we highly value your feedback. Once you have experienced our product, we would greatly appreciate it if you could leave a review. Your opinion matters to us! Thank you for considering our product. We look forward to serving you. Product details Chip Description Package Type: LQFP; Number of pins: 48; Kernel: Cortex-M3; Operating frequency: 72MHz; Storage resources: 64K Byte Flash, 20KByte SRAM; Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports, Analog-to-digital conversion: 2x ADC (12-bit / 16-channel) Timers: 3 general timers and 1 advanced timer Debug Download: Support JTAG / SWD debug interface to download, and support for IAP. Interface description: SWD interface: support for simulation, download, and debug. Mirco USB interface: power supply and USB communication, do not support the download.  USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.  MCU pin interface: leads all I / O port pins, easy to connect with peripherals. 5V and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment Other Device Description:  Power LED (PWR): Power indicator status, can determine whether the power supply is stable.  the user LED (PC13): to facilitate the I / O output test or indicate the program running. start jumping and choose programming mode: (1, the user flash memory 2, SRAM 3, system memory). reset button: reset the chip for the user program.  8M Crystal: The frequency can be set to make the system clocked at 72MHz. 32.768KHz Crystal: Available for built-in RTC, or for calibration.
