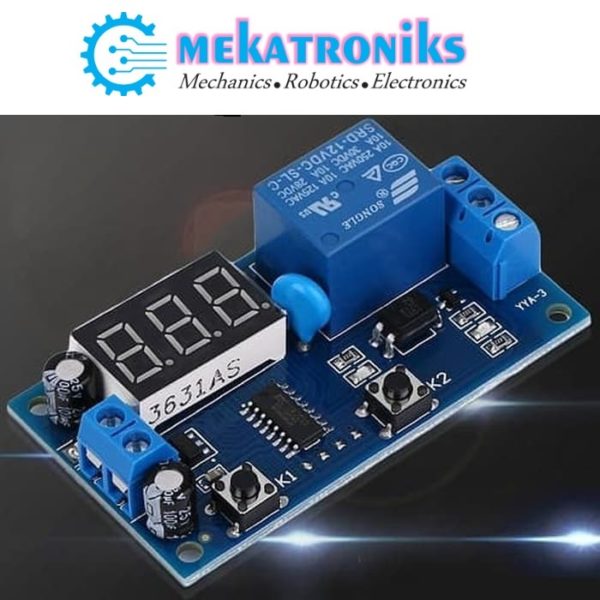

YYA3 Two Button Time Delay Module Timer Kit 2 Button 12v DC in Pakistan

Specification: Model: YYA-3 Timing range: 0s-999min adjustable Supply voltage: DC 5V Output: DC 5-30V/AC 220V 10A Static current: 20mA Working current: 50mA Life: &;100000 times Working temperature: -40~85℃ Weight: Approx. 25g   Time setting: After power-on, start the countdown. The first three times to press k1 can set the time to switch on, and the last three times is can set the time to switch off. Press K1 to change the position of time setting, press K2 to change digit. After the digital tubes do not flash, press K2 to change the position of decimal point. Timing range varies according the position of decimal point: XXX. – timing range: 0 ~ 999 minutes XX.X – timing range: 0 – 99.9 seconds XXX – timing range: 0 ~ 999 seconds After you finish the time setting, you can press and hold K2 to turn on/off the digital tubes. Categories: Incubators Accessories, Instruments & Tools, Relay Modules Tags: Time Delay, Time Relay, YYA-3
