W3230 AC 220v 20A Digital Temperature Controller in Pakistan

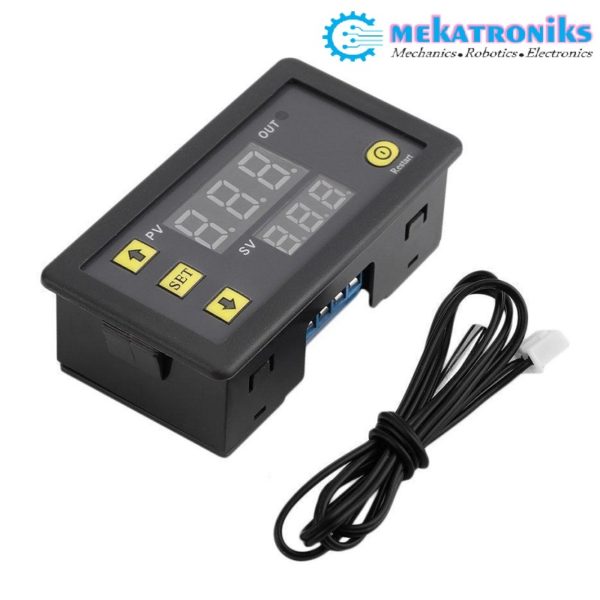

W3230 Digital Temperature Controller W3230 Digital Temperature Controller AC 220v 20A Thermostat in Body Dual Display,W3230 AC 220v 20A Digital Temperature Controller in Pakistan. Mini thermometer. With clear LED display for better readability. Wide temperature measuring range. Heating or cooling control. All parameters setting can be saved after short circuit. Relay output. High Control precision 0.1 centigrade Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system Power Supply: AC 110V-220V Temperature Controller Temperature Control Range:-55℃-120℃ Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range) Color of Displaying: red/blue Measurement accuracy: ±0.1°C Control accuracy: 0.1°C Sensor: NTC10K Waterproof sensor Output: Relay Contact Capacity 10A 220V Environmental requirements: -10-60°C , humidity 20%-85%RH Dimension:79mm *43mm*26mm Cutting Size:73mm*39mm   About this Product W3230 Digital Temperature Controller: Outdoor use uses involving potential chemical contamination or electrical interference Nuclear energy control systems, combustion systems, railroad systems, aviation systems Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations Systems, machines, and equipment that could present a risk to life or property Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system. Package List:1 x Digital Thermostat Temperature Alarm Controller Sensor Circuit connection: refer to the circuit diagram to connect the power supply and load. At this time, the digital tube (top) displays the actual measured temperature value, and the digital tube (bottom) displays the preset temperature. If the temperature sensor is missing or damaged, the digital tube will display “– –“, and the buyer must check whether the temperature sensor is installed before using it. The temperature control output is a 10A relay, which can meet various high-power loads. Please make sure the circuit is correct. Indicator light, digital tube status: Indicator light: off means the relay is disconnected, and on means the relay is closed Digital tube: display “– –“, 1. Check whether the temperature sensor is missing or damaged 2. High temperature protection of heating mode 3. Low temperature protection in refrigeration mode en.wikipedia.org Categories: Incubators Accessories, Temperature Controller Tags: 3230, Controller, Digital Temperature Controller, W3230
