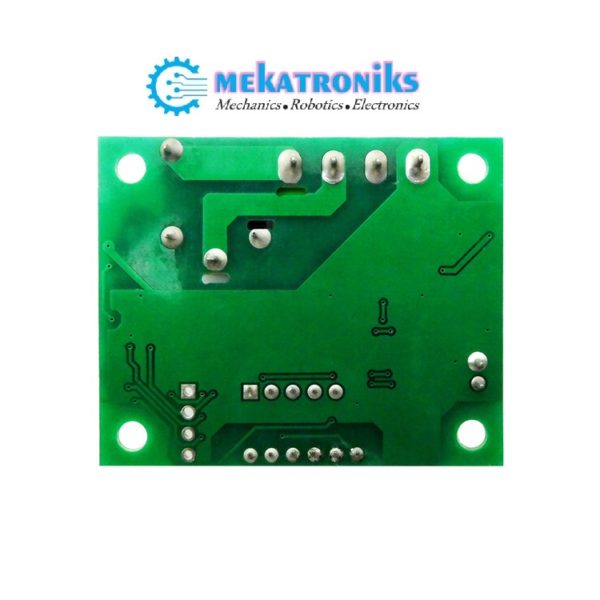

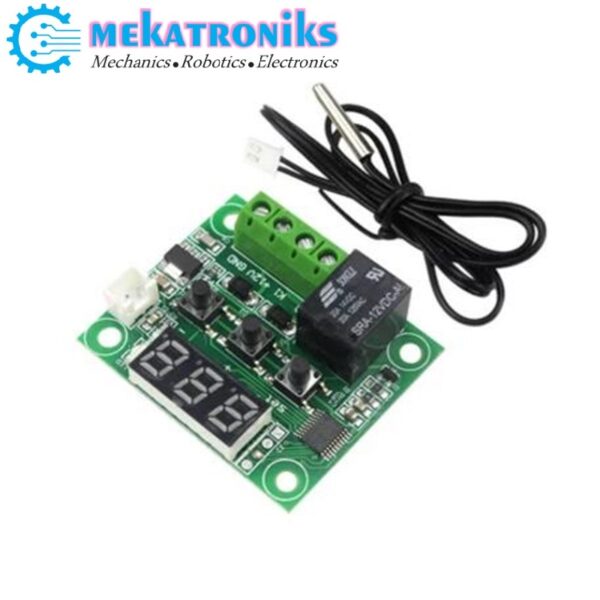

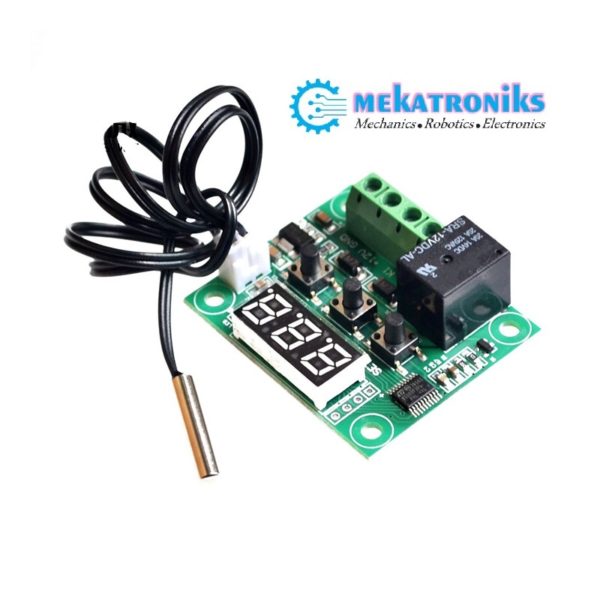

W1209 Temperature Controller DC W1209 Temperature Controller DC W1209 Digital Temperature Control Switch is a programmable thermostat. The same module can be used in both controlling / maintaining Cold and Hot temperatures. Parameter 0 can be set to either Hot or Cold Control setting. The relay module is based on a microcontroller (MCU) and has 7 user configurable parameters accessible using 3 push buttons. Features of this Product: XH-W1209 Temperature Controller. Precise Temperature Control up to 0.1C Fast Acting Control of 0.5 seconds response time With Water proof sensor LED Display for Temperature, settings and warning LED Relay Status Indicator Output Relay can be used with both AC and DC circuits W1209 Temperature Controller DC W1209 Temperature Controller. Indoor Room Temperature Control Aquarium temperature controller Temperature controller for Controlled Temperature sheds Food and Beverage temperature controller Temperature controller for Health Care applications XH-W1209 Temperature Controller. Temperature range :-50-110 ℃ Dimensions: 48.5 * 40mm Temperature control mode: ON / OFF Resolution-When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃ Control accuracy: 0.1 ℃ Hysteresis accuracy: 0.1℃ Refresh rate: 0.5S High temperature protection： 0-110℃ Supply voltage: DC 12V Static current: ≤ 35MA, attract current ≤ 65MA Operating voltage: DC 12V Output Relay Specifications: Max Current: 20A @ 110VAC, 10A @ 220VAC or 20A @ 14VDC Operating Voltage: 115VAC, 220VAC, 50VDC Measurement input: NTC (10K 0.5%) Waterproof Sensor Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85% Probe Length: ~31cm / 12.2in (including thermocouple and wire) en.wikipedia.org/wiki A home thermostat is an example of a closed control loop: It constantly measures the current room temperature and compares this to a desired user-defined set point and controls a heater and/or air conditioner to increase or decrease the temperature to meet the desired set point. A simple (low-cost, cheap) thermostat merely switches the heater or air conditioner either on or off, and temporary overshoot and undershoot of the desired average temperature must be expected Categories: Incubators Accessories, Temperature Controller Tags: Temperature Controller, W1209
