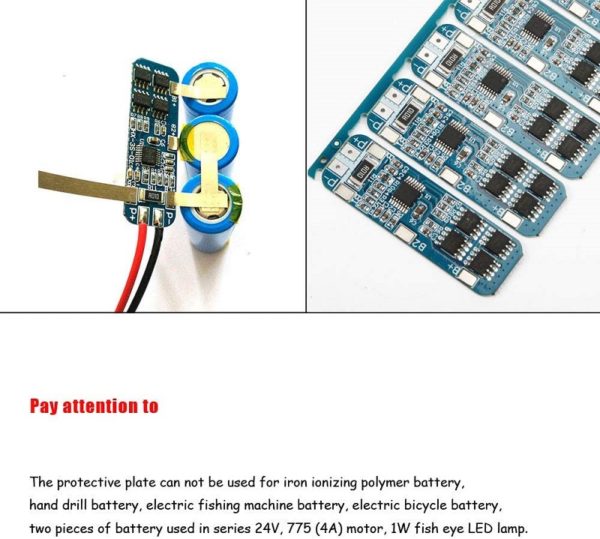

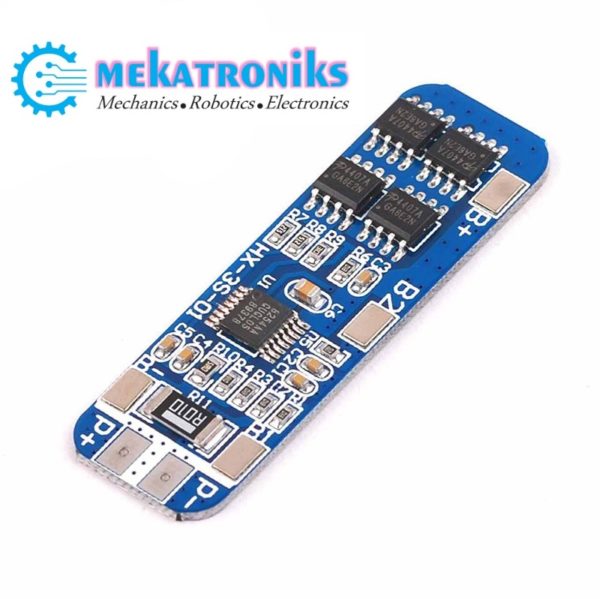

BMS 3S 10A 18650 Lithium Battery Board
$35.04
$46.95

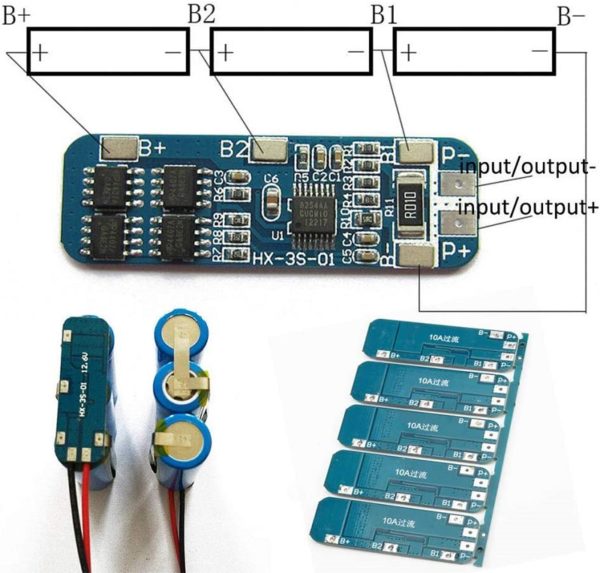

Product Description: Specifications: 3 strings: 3 18650 batteries or polymer lithium batteries in series Polymer battery rated voltage: 10.8V Rated voltage of 18650 or 3.7V lithium battery: 11.1V After the lithium battery is fully charged, the voltage is 12.6V. Maximum discharge current limit: 10A Overcharge voltage range: 4.25-4.35v±0.05v Over-discharge voltage range: 2.3-3.0v±0.05v Maximum working current: 5-8A Maximum instantaneous current: 9-10A Quiescent current: less than 6uA Internal resistance: less than 60mΩ Working temperature: -40— 50 °C Storage conditions: -40– 80 ° C Effective life: more than 30,000 hours Size: 50*16*1.0mm /1.96*0.62*0.039inch
