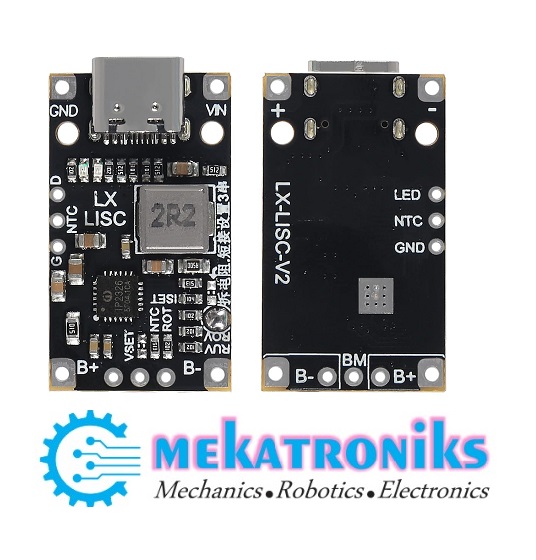

Type C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced With Indicator

Model: LX LISC V2.2 Input Voltage: 5V (via Type-C port) Output Current: Up to 2A Compatible Batteries: 2S (7.4V) and 3S (11.1V) lithium-ion battery packs Built-in Protections: Overcharge, overcurrent, and short circuit protection Compact Design: Ideal for DIY projects and portable devices   Lithium Battery Charger 2S 3S Fast Charger Support QC fast charge Lithium Battery Charger 2S 3S Fast Charger , 15W synchronous switching boost charging Boost charging efficiency 94% Can be set to charge 2 or 3 strings of lithium batteries 2 strings with balanced charging Adjustable charging current Input overvoltage and under voltage protection Adjustable charging timeout protection Output overcurrent, overvoltage, short circuit protection Lithium Battery Charger 2S 3S 1.Input : type-c port or wire input. Output: support 2 strings and 3 strings, the battery needs to add a protection plate. 2.Current setting: two parallel current Settings Streams default to 100K(0.9A) and 180K (0.5A). The formula is current  3.Battery charging voltage setting: the default single string is 4.2V, general battery that’s the same value, you don’t have to change it. Check the RVSET Settings table, just set the board VSET resistance. 4.LED indicator light: normal red light is on, charging process blue light. When the indicator is full, the blue indicator turns off and blinks when an exception is detected. Categories: Battery Charger, BMS 18650, Buck/Boost Modules, Converters, Dc-Dc Step Up, Power Bank, Power Modules Tags: 18650 Battery Charger, Charger, Lithium Battery Charger, Quick Fast Charger
