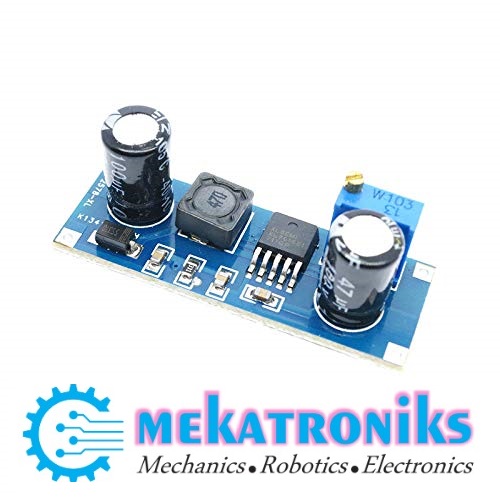

XL7015 DC-DC Converter Step Down Module 5V-80V Wide Voltage
$52.52
$90.34
XL7015 DC Step Down Description XL7015 DC Step Down Converter Step Down Module 5V-80V module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers. 1. 5V to 80V wide input voltage range; 2. The output voltage is adjustable from 5V to 20V; 3. The minimum pressure drop 1V; 4. The maximum switching current of 0.8A; 5. Recommended output power less than 7W; 6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection; 7. The excellent linearity and load regulation; Wiring instructions XL7015 DC Step Down 1. VIN: input voltage (5V-80V); 2. GND: the input voltage ground terminal; 3. VOUT: Output voltage terminal (5V-20V); 4. GND: output voltage of the ground terminal; XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers. 1. 5V to 80V wide input voltage range; 2. The output voltage is adjustable from 5V to 20V; 3. The minimum pressure drop 1V; 4. The maximum switching current of 0.8A; 5. Recommended output power less than 7W; 6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection; 7. The excellent linearity and load regulation; Hardware introduction and notes Board size: 16mm * 44mm; Wiring 1. VIN: input voltage (5V-80V); 2. GND: the input voltage ground terminal; 3. VOUT: Output voltage terminal (5V-20V); 4. GND: output voltage of the ground terminal; en.wikipedia.org 9706 Promotion Module Categories: Dc-Dc Converters, Dc-Dc Step Down, Power Modules Tags: Buck, Buck Converter, DC-DC Step Down, Step Down, XL7015
