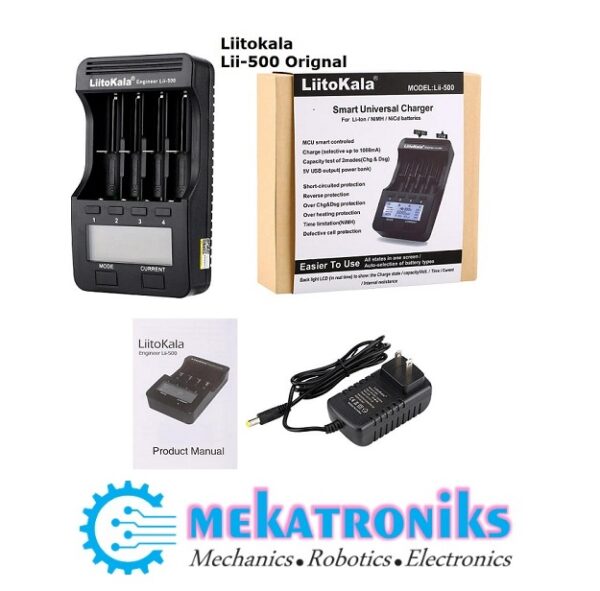

LiitoKala Lii 500 Lithium Battery Charger 18650/26650 in Pakistan

LiitoKala Lii 500 Lithium Battery Charger LiitoKala Lii 500 Lithium Battery Charger Four charging current regulator(300mA/500mA700mA/1000mA) Batteries of different specifications can be charged simultaneously(18650/26650/AA/AAA……) The charger use one independent LED screen, the volt, current, time, capacity and Internal resistance Parameter can be seen apparently. In the CHARGE mode, each channel works independently. Can choose different current and battery to charge, such as Lithium-ion and NI-MH battery. In the FAST TEST mode, four channels can quickly detect the battery capacity. Lithium-ion battery and NI-MH battery can work independently. There are two processes for the rapid detection of battery capacity, one is discharging, another is full capacity. Specific parameters 1.DC input voltage:12V/2.0A 2.Lithium battery charging current:300mah/500mah/700mah/1000mah(4.2V) 3.NI-MH charging current:300mah/500mah/700mah/1000mah(1.48V) 4.Rechargeable battery specifications: 18650/26650/14500/AA/AAA 5.Discharging current：250mah/500mah 6.USB output: 5V—1000mah 7.Termination mode: Intelligent voltage monitoring 8.Dimensions: 162(length)*96(width)*36(height)mm LiitoKala Lii 500 Lithium Battery Charger: In the NOR TEST mode, there are three steps in the process of detecting the battery capacity(charging fully, discharging and then charging fully) CHARGE mode, FAST TEST mode and NOR TEST mode can work simultaneously(set charging dependently/quickly detecting the battery capacity/Normally detecting capacity) 8.Series of protection functions: over-charging and over-discharging/short circuit/activation without any volt/charging between 1.65V-2.2V/Intelligently recognize the bad battery/protecting the reversed battery 9.With the standard USB 5V/1000mA output function/Complete USB output from one lithium batteries to four lithium batteries/NI-MH battery can not with USB output 10.Equipped with the specialized power adapter. DC input voltage: 12V/2A.   Warning 1.This charger can only charge Cylindrical lithium-ion and NI-MH battery. Lithium iron phosphate battery is unavailable. 2.Please refer to the instructions carefully before use, pay attention to the recommended battery charging current, do not exceed the recommended charging current. 3.Do not use other power adapter. 4.There is a little fever when the charger is charging and discharging, but it is a normal phenomenon. 5.Unplug the power and pull out the battery when you stop using the charger. 6.Only indoor use normally. 7.The product measured data for reference only en.wikipedia.org Categories: Battery Charger, Power Modules Tags: 18650 Battery Charger, Battery Charger, Lii500, LiitoKala
