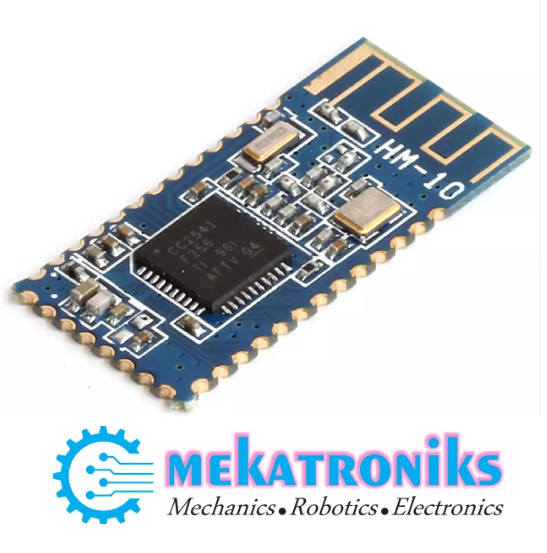

HM-10 HM10 Bluetooth Module 4.0 BLE Original in Pakistan

HM-10 HM10 Bluetooth Module   This small size Bluetooth 4.0 TTL transceiver module allows your target device communicate with your iPhone/iPAD, IOS 6 or Android 4.3 above devices. It’s easy to use and completely encapsulated. You can set it as slave or master. You can use AT command set the baudrate. Ultra-low standby power consumption 90uA~400uA. Power input: 3.6V-6V DC(Can not higher than 6V). Coverage up to 60 meters. Built in PCB antenna. Size: 43mm x 15mm. Color: Blue. Net Weight: 4g. HM-10 HM10 Bluetooth Module BT Version: BT Specification V4.0 BLE Working frequency: 2.4GHz ISM band Modulation method: GFSK (Gaussian Frequency Shift Keying) RF Power: -23dbm, -6dbm, 0dbm, 6dbm Speed: Asynchronous: 2-6K Bytes, Synchronous: 2-6K Bytes Security: Authentication and encryption Service: 0xFFE0 (Modifiable use AT UUID command) Characteristic: 0xFFE1 (Modifiable use AT UUID command) Characteristic: Notify and Write (Modifiable use AT UUID command) Power: 2.5V~3.5VDC 50mA Power: Active state 8.5mA; Sleep state 50~200uA Working temperature: –20 ~ 105 Centigrade Size: HM-10 27mm x 13mm x 2.2 mm Categories: Bluetooth Modules, Transmitter & Receiver, Wireless & Communication, Wireless Modules Tags: Bluetooth, HM-10, HM10
