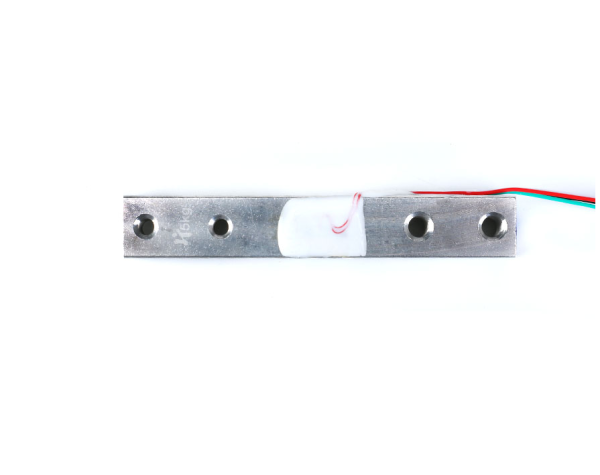

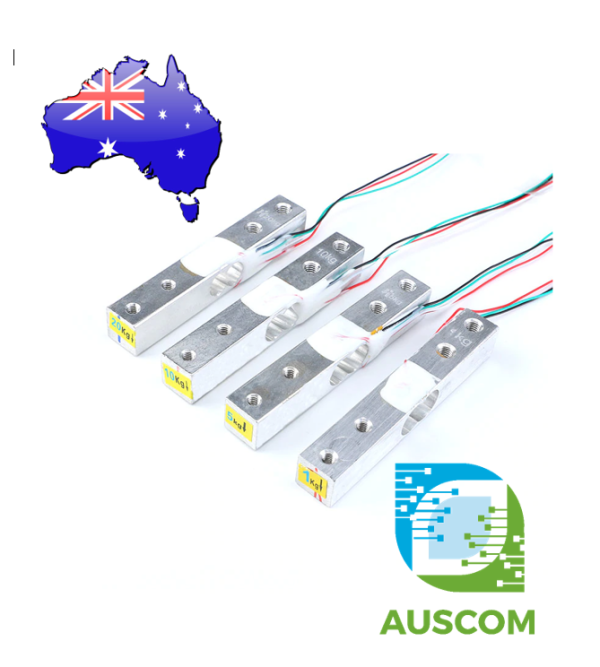

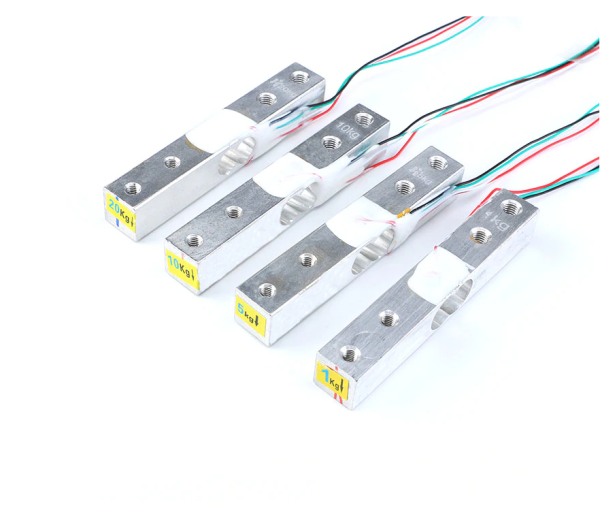

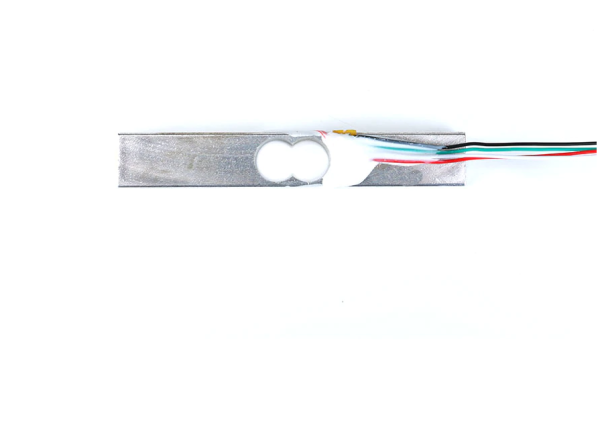

Description ⚖️ 1kg / 5kg / 10kg / 20kg Load Cell Weight Sensor – Precision Strain Gauge for Arduino, HX711 & Microcontrollers | AuscomTech Achieve highly accurate weight and force measurements with these aluminium alloy strain-gauge load cells, available in 1kg, 5kg, 10kg, and 20kg capacities.Perfect for DIY scales, smart weighing systems, force measurement projects, and Arduino-based automation. Designed for compatibility with the HX711 24-bit ADC amplifier, these load cells deliver stable, repeatable readings suitable for hobby, education, and professional prototype applications. ⭐ Key Features ⚖️ Multiple Rated Load Options Choose from: 1kg 5kg 10kg 20kgAllows you to match the sensor to your project requirements. �� High Accuracy Output Rated Output: 1.0mV/V ±0.15mV/VZero Output Deviation: ±0.1mV/V �� Stable Long-Term Performance Creep: ≤ 0.03% F.S. / 30 minEnsures reliable load readings without drift. �� Easy 4-Wire Interface Standard load-cell wiring: Wire Function Red Excitation (E ) Black Excitation – (E–) Green Signal (S ) White Signal – (S–) �� Wide Voltage Compatibility Recommended Excitation: 3V–12V DCMaximum Excitation: 15V DC ��️ Durable Construction Made from high-strength aluminium alloy with IP65 protection, suitable for labs, classrooms, workshops, and indoor/outdoor enclosures. �� Compact Size Approx. 80 × 13 × 13 mm (3.15 × 0.50 × 0.50 inches) �� Technical Specifications Specification Details Rated Capacity 1kg / 5kg / 10kg / 20kg Material Aluminium Alloy Protection Class IP65 Rated Output 1.0mV/V ±0.15mV/V Zero Output ±0.1mV/V Recommended Voltage 3–12V DC Max Voltage 15V DC Creep ≤0.03% F.S. / 30 min Wiring 4-wire (Red/Black/Green/White) �� Compatible With HX711 ADC Load Cell Amplifier Arduino Uno / Mega / Nano ESP32 / ESP8266 Raspberry Pi (via HX711) STM32 / PIC / AVR microcontrollers Digital scales and force measurement controllers �� Typical Applications DIY digital weighing scales Coffee machine / dosing systems Smart home weight sensors Robotics force measurement Livestock / container / bin weight monitoring 3D printer filament weight tracking Industrial prototype load measurement IoT weight sensing with HX711 WiFi �� Package Includes 1 × Load Cell Weight Sensor (choose 1kg, 5kg, 10kg, or 20kg)
