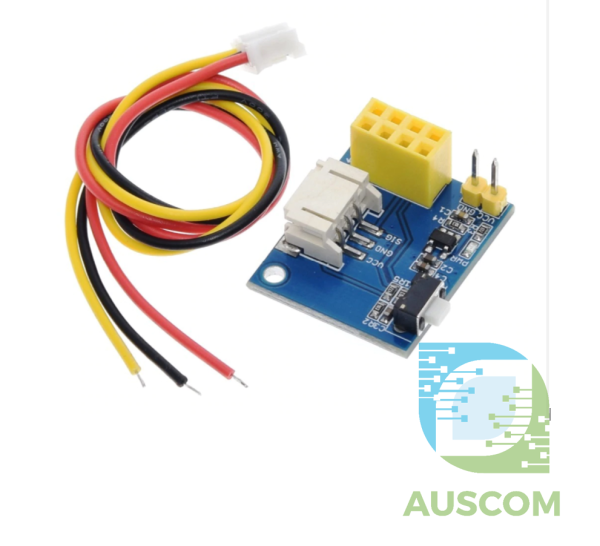

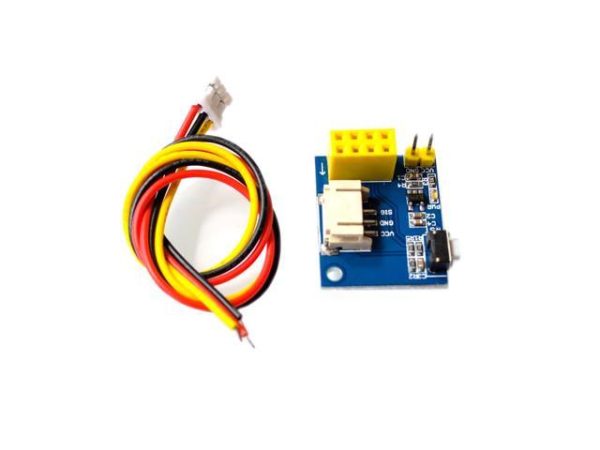

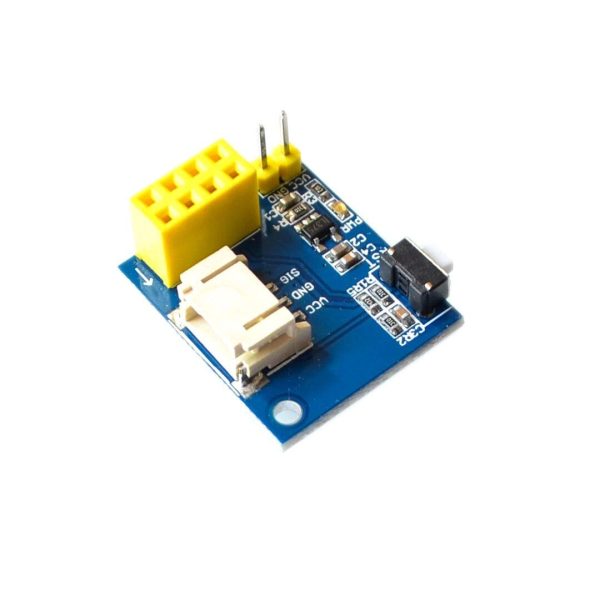

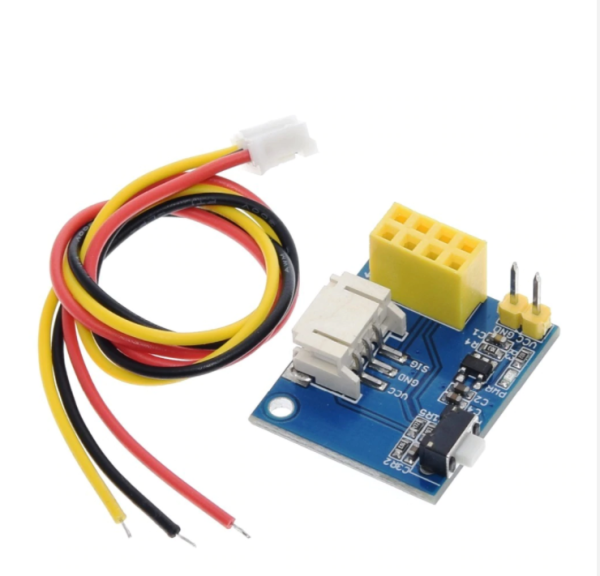

ESP8266 ESP-01 ESP-01S WIFI RGB LED Controller Module Arduino WS2812
$22.79
$39.2
Description This nifty little module is quite useful to hook-up your WS2812 based LED setup to your ESP-01S. Can also be used with ESP-01. The module features: ESP-01S socket – (ESP-01S not included) VCC/GND Pin to supply your LED setup as well as ESP-01S GPIO2 wired to the SIG pin for your LED rig Reset button Wiring harness from module to LED (VCC, GND, SIG). Bare cables (to wire to LED setup) on one side, PH2.0 connector to the module on the other. Specification: Support for ESP-01S/ESP-01 Control Pin: GPIO2 Operating Voltage: DC 3.7V-5V Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. If your LED Rig is 5V powered, use a DC 3.7V-5V power supply
