0-10V Signal Generator Module Adjustable Analog PLC Simulator LCD

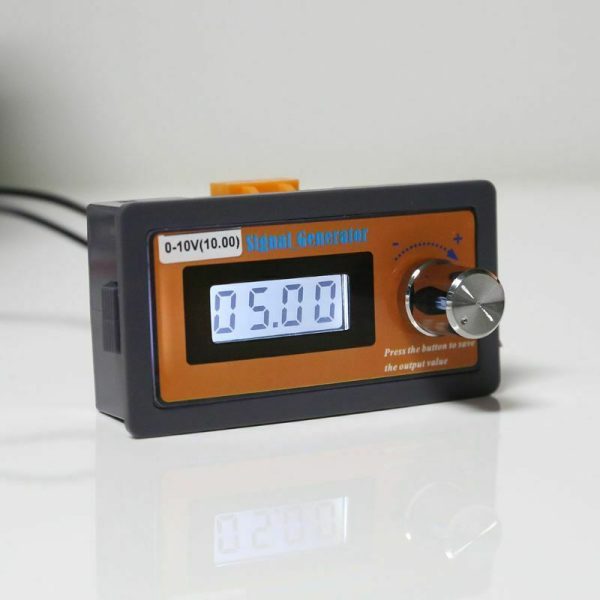

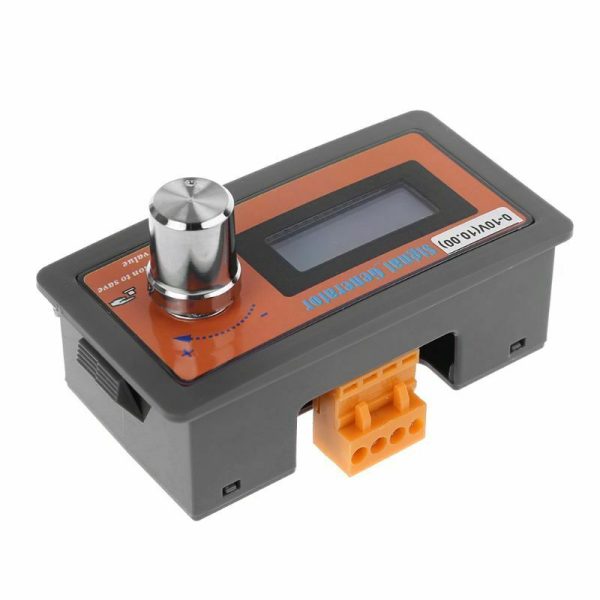

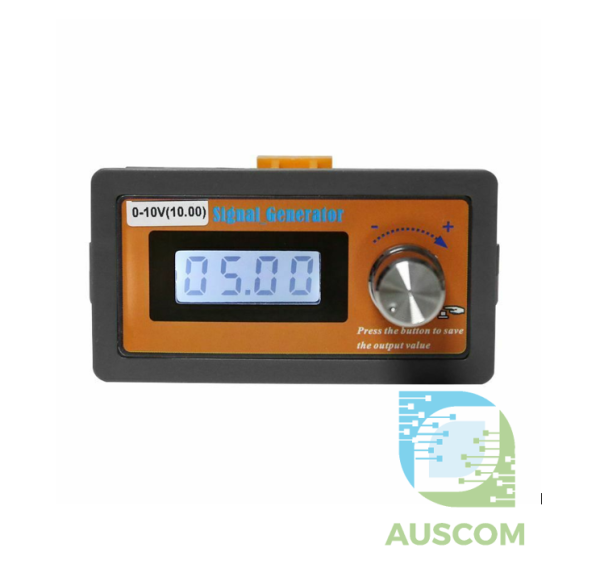

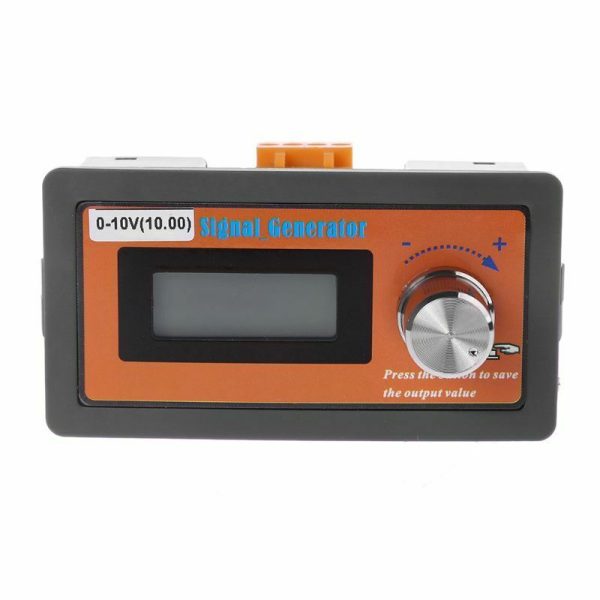

Description �� 0-10V Signal Generator Module Adjustable Analog Output LCD | AuscomTech This 0-10V signal generator module is a precise analog output device designed for generating adjustable voltage signals for PLC testing, industrial control systems, and calibration tasks. It provides a stable and accurate 0-10V output, making it ideal for simulating sensor signals and testing analog input devices. Featuring a 4-digit backlit LCD display and rotary encoder control, this module allows both fine and coarse voltage adjustments with excellent accuracy up to ±0.02V. It supports manual control or automatic programmable output for generating dynamic voltage curves, while built-in reverse polarity and short-circuit protection ensure safe operation. This module is widely used by engineers, technicians, and automation professionals for PLC commissioning, system diagnostics, and process simulation. It is also suitable for DIY electronics, lab testing, and industrial maintenance where reliable analog signal generation is required. ⭐ Key Features Adjustable 0-10V Output – Simulates analog voltage signals for PLC and control systems High Accuracy Output – ±0.02V precision for reliable testing and calibration LCD Voltage Display – 4-digit backlit screen for clear real-time readings Encoder Control Adjustment – Smooth fine (0.1V) and coarse (1.0V) tuning Programmable Output Mode – Supports automatic dynamic voltage curve generation Protection Features – Reverse polarity and output short-circuit protection Compact Panel Mount Design – Easy integration into control panels and enclosures �� Technical Specifications Output Voltage Range: 0–10V DC Output Current: Up to 200mA Accuracy: ±0.02V (typical) Display Resolution: 0.1V (fine), 1.0V (coarse) Display Type: 4-digit LCD with backlight Power Supply: DC 7V–28V (must be ≥2V above output) Adjustment Method: Rotary encoder (manual / programmable) Protection: Reverse polarity & short-circuit protection Panel Cut-out Size: 77 × 40 mm �� Typical Applications PLC analog input testing (0-10V systems) Industrial automation diagnostics Sensor signal simulation Control system calibration Laboratory testing and measurement Process control verification DIY electronics and prototyping ⚠️ Important Notes Power supply must be at least 2V higher than desired output voltage Maximum output current is 200mA – do not exceed this limit Designed for signal generation, not for powering loads Ensure correct wiring to avoid damage despite protection features �� Package Includes 1 × 0-10V Signal Generator Module �� Recommended Accessories (Not Included) DC Power Supply – Required to power the module (7–28V input) Multimeter – For verifying output voltage accuracy Panel Enclosure – For clean installation in control systems
