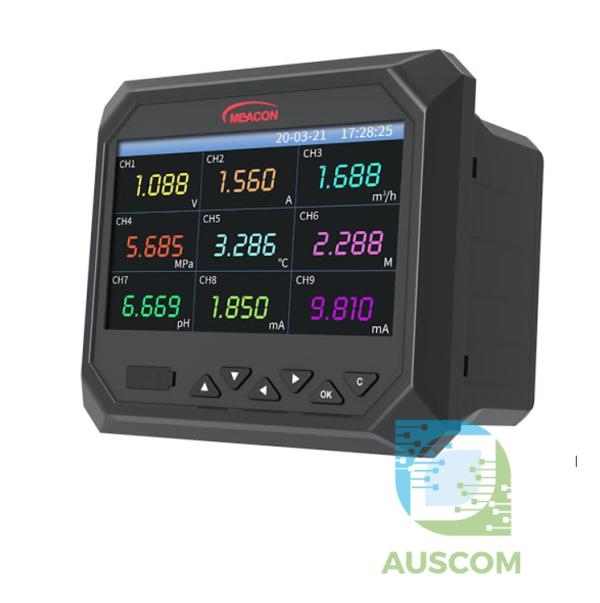

Meacon MIK-6000F 7″ Paperless Recorder Multi-Channel Datalogger

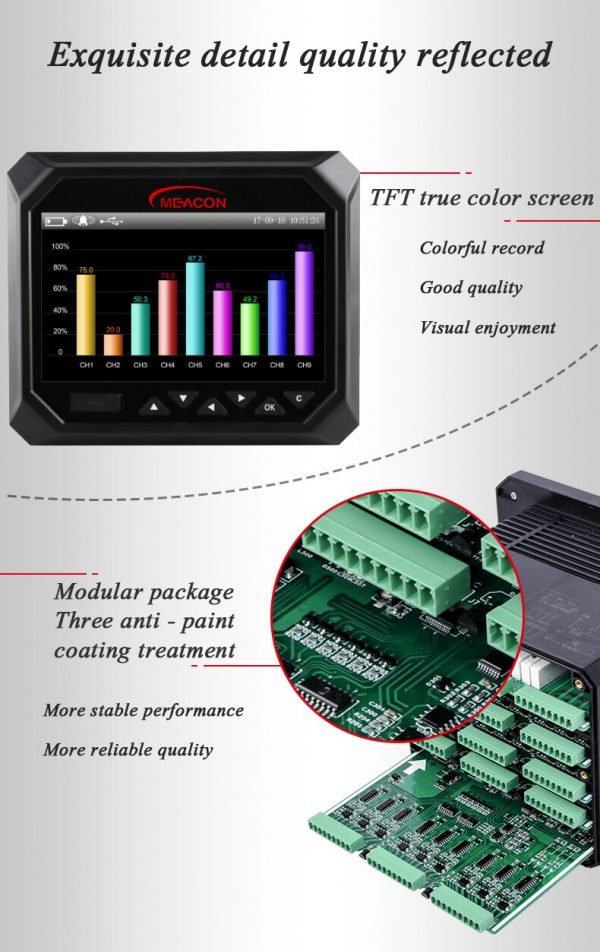

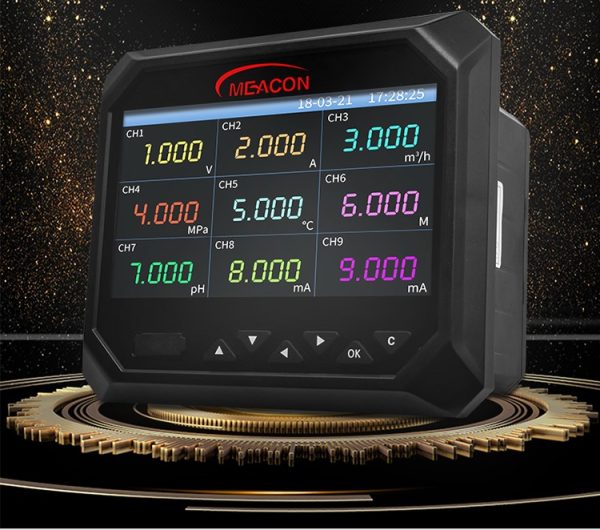

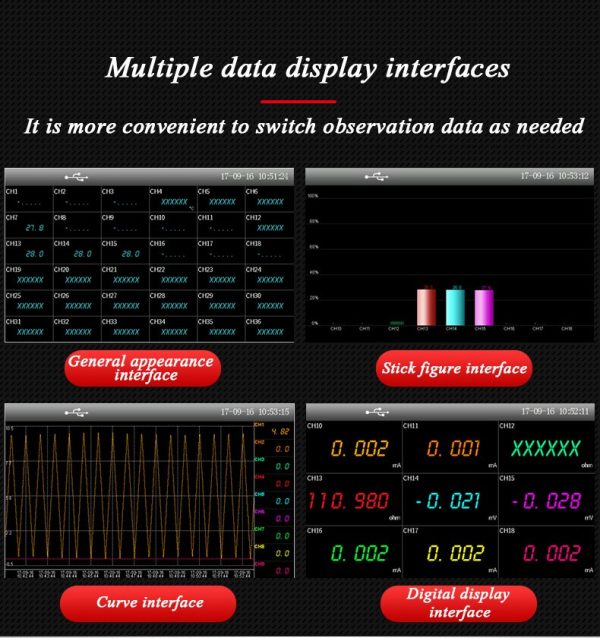

Description �� Meacon MIK-6000F Multi-Channel Datalogger – 7″ Paperless Recorder for Temperature & Analog Signals | AuscomTech The Meacon MIK-6000F Paperless Recorder is an industrial-grade multi-channel data logging and visualization system designed for continuous monitoring, recording, and analysis of temperature and analog process signals.Featuring a 7-inch high-resolution color LCD, wide signal compatibility, and RS-485 communications, this recorder is ideal for process control, energy monitoring, laboratories, manufacturing, and utilities. This unit replaces traditional paper chart recorders, delivering digital accuracy, long-term storage, and flexible configuration in a compact panel-mount format. ⭐ Key Features ��️ 7-Inch High-Resolution Color LCD Large 7″ TFT display with 800 × 480 resolution and LED backlight for clear trend graphs, numeric values, and alarm status. �� Multi-Channel Signal Inputs Supports a wide range of industrial signals including: • 4–20mA / 0–20mA / 0–10mA• 0–5V / 1–5V• ±20mV / 0–100mV ��️ Temperature Measurement (RTD & Thermocouple) Compatible with common temperature sensors: RTD: PT100, Cu50, PT1000Thermocouple: B, E, J, K, S, T, R, N ⏱️ Flexible Data Recording Intervals Configurable logging intervals from 1 second up to 11 days, suitable for both high-speed sampling and long-term monitoring. �� Multi-Channel Alarm System Up to 8 alarm outputs with relay contacts (2A / 250VAC, normally open) for process alerts, shutdowns, and notifications. �� RS-485 Communication Two-way RS-485 interface for system integration, remote monitoring, and data extraction. �� Panel-Mount Industrial Design Compact, robust enclosure designed for control panels and industrial enclosures. �� Dual-Language Interface Selectable English / Chinese user interface. �� Technical Specifications Display • Screen Size: 7″ TFT LCD• Resolution: 800 × 480• Backlight: LED Signal Inputs • Current: 4–20mA, 0–20mA, 0–10mA• Voltage: 0–5V, 1–5V, ±20mV, 0–100mV• RTD: PT100, Cu50, PT1000• Thermocouple: B, E, J, K, S, T, R, N Recording • Logging Interval: 1 second to 11 days• Sampling Period: 1 second minimum Alarms • Alarm Channels: 8• Relay Output: 2A / 250VAC (NO) Communication • Interface: RS-485• Protocol: MODBUS-RTU (typical) Power Supply • Supply Voltage: 176–264VAC• Frequency: 47–63Hz Environmental • Operating Temperature: 0°C to 50°C• Humidity: 10–85% RH (non-condensing) Mechanical • Panel Cut-Out: 138.5 × 138.5 mm• Overall Dimensions: 193 × 162 × 144 mm �� Compatible With • Temperature sensors (RTD & thermocouple)• PLC and DCS systems• SCADA platforms• Energy monitoring systems• Process control instrumentation• Industrial automation panels �� Typical Applications • Industrial process monitoring• Temperature and signal data logging• Energy and utilities monitoring• Laboratory testing and validation• Manufacturing quality control• Environmental monitoring• Paper chart recorder replacement ⚠️ Important Notes • This is a paperless recorder – no chart paper required• Input configuration must match sensor type before operation• Alarm relay wiring should follow local electrical standards �� Package Includes • 1 × Meacon MIK-6000F Paperless Recorder
