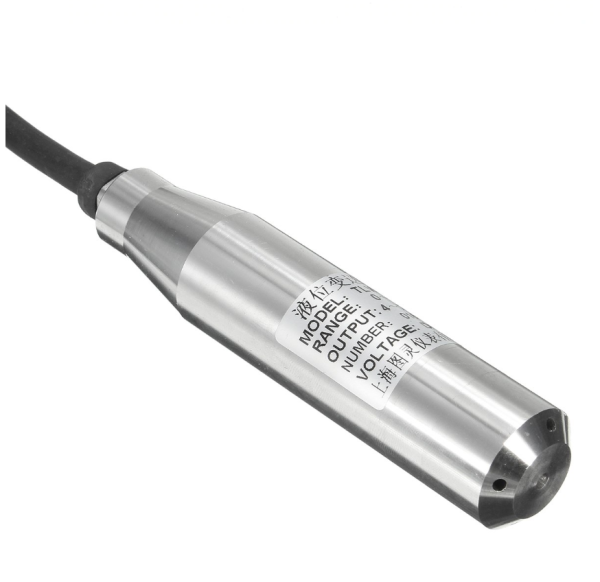

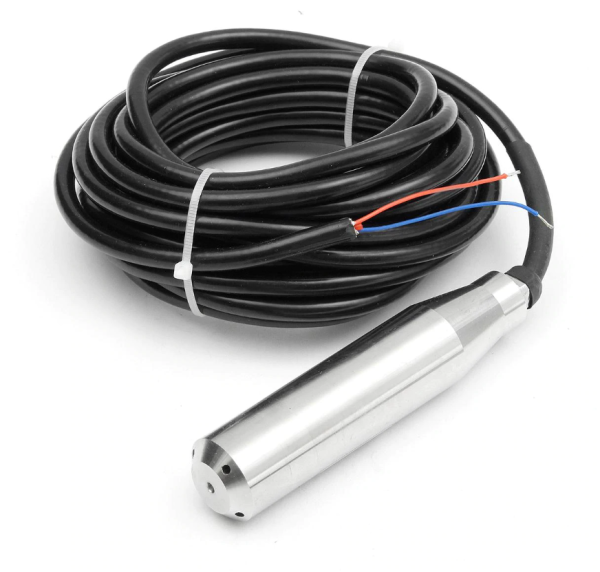

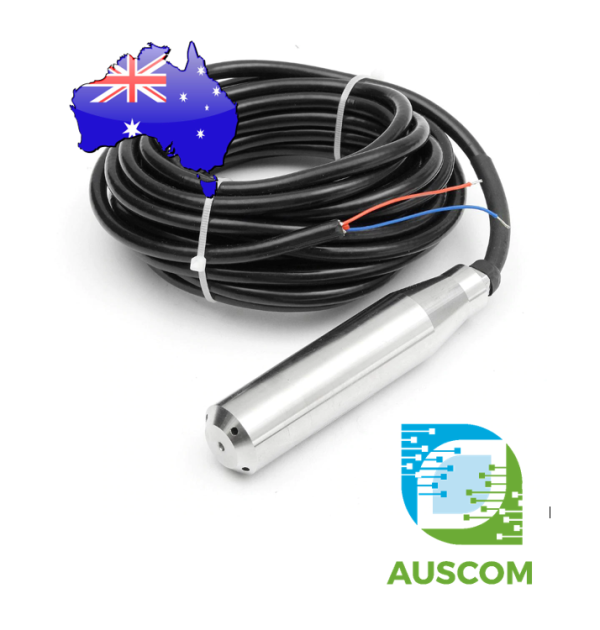

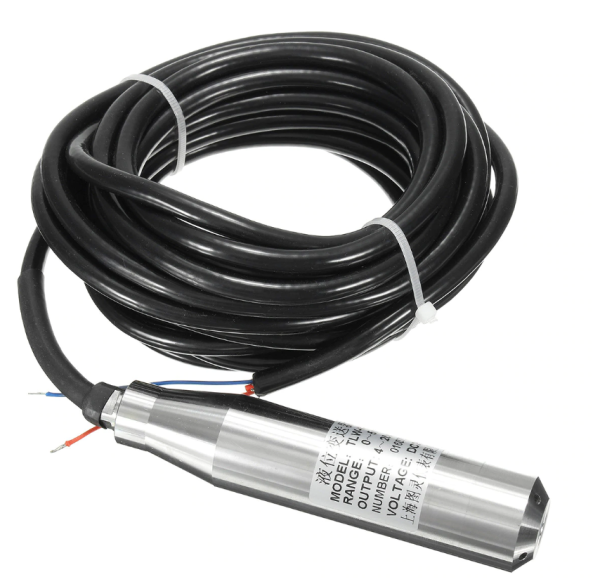

Description �� 0–5m Submersible Water Level Transmitter 4-20mA 12–32VDC IP68 | AuscomTech The YB-2J-F Submersible Liquid Level Transmitter is a high-precision water level sensor designed for continuous depth measurement in tanks, wells, reservoirs, and bore systems. Built with a 304 stainless steel housing and IP68 waterproof protection, this transmitter uses a diffused silicon pressure sensor with full digital signal conditioning to provide a stable and accurate 4–20mA analog output. Designed specifically for water measurement, this sensor is ideal for industrial monitoring, automation systems, PLC integration, and remote level tracking applications. ⭐ Key Features �� 0–5 Metre Measurement RangeDesigned for accurate water depth measurement up to 5 metres. �� Industry Standard 4–20mA OutputStable analog current signal compatible with PLCs, data loggers, SCADA, and control systems. ⚡ Wide Supply VoltageOperates from 12–32VDC (surface marking may show 24V, but supports full 12–32V range). ��️ IP68 Waterproof RatingFully submersible design with multi-layer sealing for long-term water immersion. �� Diffused Silicon Sensing ElementHigh-precision internal sensor for improved measurement stability. �� 304 Stainless Steel HousingCorrosion-resistant construction for water applications. �� 45° Anti-Impact Probe DesignAngled probe reduces blockage risk and improves durability. �� Technical Specifications Model: YB-2J-F Measurement Range: 0–5 metres Output Signal: 4–20mA (analog current loop) Supply Voltage: 12–32VDC Measurement Accuracy: ±0.5% FS Long-Term Stability: ±0.2% FS / year Temperature Drift: ±0.01% FS / °C Medium Temperature: -40°C to 80°C Ambient Temperature: -40°C to 80°C Temperature Compensation Range: -10°C to 70°C Overload Protection: Built-in Impact Resistance: 20g (20–5000Hz) Protection Rating: IP68 Cable Length: 5 metres (vented air guide cable) Material: 304 Stainless Steel Measured Medium: Clean water only ⚠️ Important Notes • Designed for water only• Do NOT use with corrosive liquids or chemicals• Not recommended for liquids that attack stainless steel• Requires appropriate 4–20mA input device for signal reading• Must be powered within specified 12–32VDC range �� Compatible With • PLC analog input modules (4–20mA)• Industrial controllers• SCADA systems• Data acquisition systems• Arduino / ESP32 (with 4–20mA interface module)• Water tank monitoring systems ⚙️ Typical Applications • Bore water level monitoring• Water tank depth measurement• Reservoir level control• Irrigation systems• Pump automation systems• Industrial water management• Remote telemetry installations �� Package Includes • 1 × YB-2J-F 0–5m Submersible Water Level Transmitter 5m vented cable
