DSO211 DS211 Digital Oscilloscope Portable Pocket-Sized Nano Handheld Storage Mini ARM

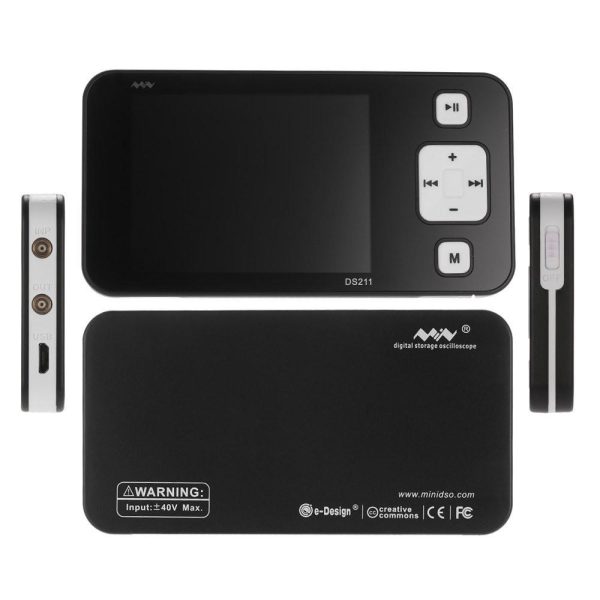

Description Introducing the DSO211: Your Ultimate Pocket-Sized Digital Storage Oscilloscope Discover the DSO211, a compact digital storage oscilloscope designed to meet your fundamental electronic engineering needs. Built upon the cutting-edge ARMCortex™-M3compatible 32-bit platform, this handheld oscilloscope boasts a vibrant 320*240 color display, an 8MB internal USB flash drive, seamless USB connectivity, and rechargeable batteries. And the best part? It’s incredibly lightweight, tipping the scales at a mere 65g! Unleash the Power of Portability Empower yourself with the Portable Digital Oscilloscope DIY Kit, delivering waveform visualization in a size that fits right in your pocket. Experience over 2 hours of uninterrupted battery operation, making it an ideal companion for on-the-go tasks. This DIY kit comes with open-source code, making the schematic, PCB layout, and program code freely available for your creative reimagining. Versatile Applications Outdoor Maintenance: Perfect for tasks involving AC/DC switching power supplies, inverters, elevators, building fire-fighting equipment, and industrial control circuits. Precise Hardware Maintenance and Software Debugging: Dive into RS232, RS485, I2C, CAN, and other communication interface circuits. Also, explore LED display and keyboard scan driver circuits, along with brushless motor drive circuits. Comprehensive Circuit Analysis: Seamlessly analyze audio devices, electronic toys, remote control models, and automotive electronics circuits. Educational Excellence: Tailored for student development, offering hands-on experience in small electronic production. Signal Observation: Perfect for observing signal fluctuations in specific circuits, such as relay and switch contact jitter, battery charge and discharge curves, load transient responses in power supplies, and temperature sensor characteristic measurements. Power Supply Circuitry: Ideal for power supply-related electronic circuits, including SCR voltage regulation, power factor correction, electronic energy-saving lamps, sodium lamps, dysprosium lamp mercury xenon lamp drive circuits, and more. Technical Specifications Model: DSO Nano (DSO211) MCU: STM32F103VC ADC: MCU internal ADC Channels: 1 Analog channel 1 internal channel Analog Bandwidth: 200KHz Max Sample Rate: 1MSa/s Maximum Memory Depth: 8K Horizontal Sensitivity: 1uS/Div~2S/Div (1-2-5 sequence step) Vertical Sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step) Input Resistance: 1MΩ Coupling: DC / AC Auto Adjustment Mode: AUTO_FIT Calculation Waveforms: -A, RecA, A RecA Storage: 8MB USB flash disk memory Preloaded APPs: 1 Operation: User-friendly buttons USB Interface: Micro USB Battery: 500mAh for extended use Screen Size: 2.8 inches Screen Resolution: 320 × 240 pixels What’s Included in the Package 1x DSO211 Digital Oscilloscope Device 1x Probe (X1) 1x Allen Key 1x Self-Printed Paper Manual Elevate your electronic engineering endeavors with the DSO211. Embrace the convenience of portability without compromising on performance. Whether you’re an enthusiast, a student, or a professional, this versatile oscilloscope is your ultimate companion for exploration, experimentation, and innovation.
