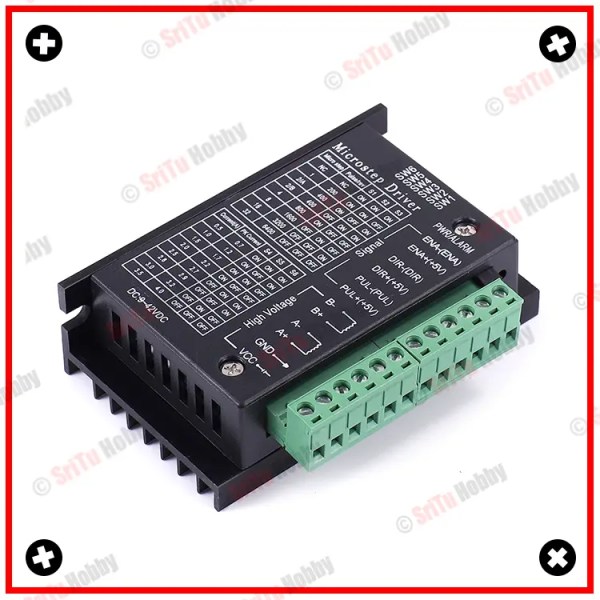

Description Thank you for visiting our product page! We strive to provide you with an effortless shopping experience. Our checkout process is simple and offers various shipping options with tracking. Furthermore, we believe in maximizing the value of your purchase. On this website, you can find detailed instructions on how to use this product and explore various projects we have created using it. These resources are designed to help you make the most of your purchase. How to use this product — Click on me Free projects and tutorials — Click on me If you have any questions or encounter any issues, our dedicated customer support team is always ready to assist you. Please don’t hesitate to reach out to us through our user-friendly Contact Us page. We are committed to ensuring your complete satisfaction. Lastly, we highly value your feedback. Once you have experienced our product, we would greatly appreciate it if you could leave a review. Your opinion matters to us! Thank you for considering our product. We look forward to serving you. Product details PWM chopper-type bipolar stepper motor driver IC TB6600HQ/HG is a single chip PWM chopper type bipolar sinusoidal micro stepping driving of stepping motor. Can control 2-phase stepper motor forward and reverse rotation, With 1-2, W1 -2, 2W1 -2, 4W1 -2 phase excitation mode. Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration and high efficiency work. Features single-chip bipolar sine micro-step stepper motor driver The new BiCD 0.13 nm process up to 50V pressure resistance (a ) = 0.4. The forward and reverse rotation control 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32) output current: IOUT = 5.0A (peak, in 100ms) rated output: IOUT = 4.5 A package: HZIP25 – 1.00F input port internal pull-down resistor: 100 K. alarm output pin current: Ialert = 1mA monitoring output pin (MO): Imo= 1mA with reset and enable pin with standby function.
