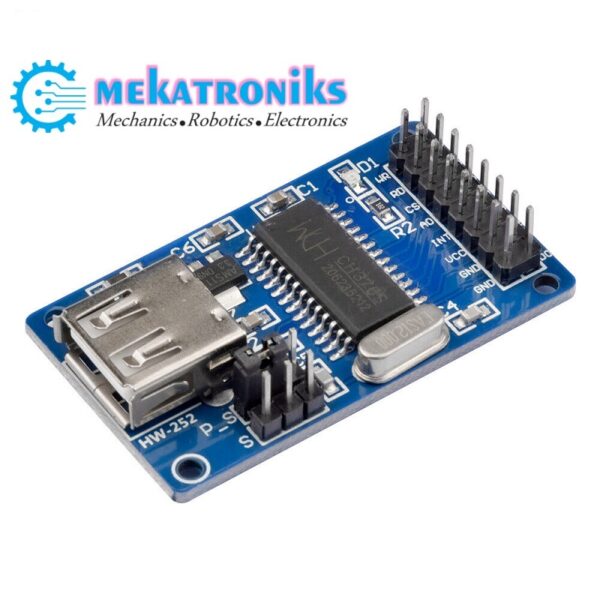

CH376S Disk Read Write Module USB Flash Disk For Arduino

CH376S Disk Read Write Description CH376 is common a USB bus interface chip, with 8 bit data bus and reading , writing and chip select lines and interrupt output , can easily attached to the system bus of the single chip microcomputer /DSP/MCU/MPU controller. In the USB host mode , CH376 also provides a serial communication mode, through the serial input, serial output and interrupt output connected with the MCU /DSP/MCU/MPU. The “CH376S/CH375 USB read/write module” has a CH376S/CH375 chip onboard which does most of the hard work for you. All you have to do is send the module some commands from the Arduino and the CH376S/CH375 chip will do the rest. You can communicate with the module in three different ways: Communication SPI and Serial (UART) . CH376 is used as file manage control chip, used to MCU system read/write file in USB Flash Driver SD card. CH376 supports USB-Device Mode and USB-HOST Mode. Set the basic firmware of USB communication protocol in the inner. It is also set firmware of special communication protocol to deal with Mass-Storage devices, communication interface firmware of SD card, FAT16, FAT32 and FAT12 CH376S Disk Read Write 1.2×8 connection head, can be convenient to hang with MCU 2.According to the jumper option, which can work in parallel or serial mode 3.USB status indicator light 4.Plate load LDO 3.3V 1117, to provide the maximum 800mA current 5.5V power supply by the target board 6.12MHZ crystal 7.Size:47*27mm Package included: 1 x CH376S U disk module en.wikipedia.org Categories: Accessories, Arduino & Components, Converters, Programmers, Programmers & Microcontroller Tags: CH376S, Reader, USB Flash Disk, Writer
