$74.35
$134.57

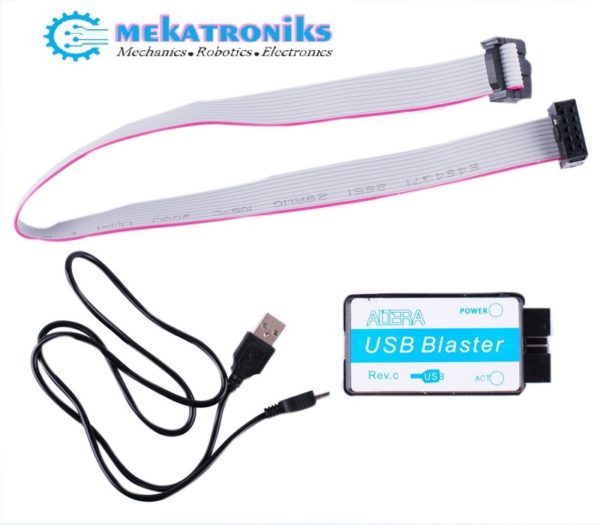

Mini USB Blaster Altera Programmer Description: USB Blaster Mini Programmer Debugger USB interface FPGA/CPLD download Signal Tap II embedded logic analyzer NIOS II debug mini USB programmer.1. Support 1.5V,1.8V,2.5V,3.5V and 5.0V.2. Support all ALTERA products : CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, Stratix II, Cyclone, Cyclone II, ACEX 1K, APEX20K and FLEX 10K ) ;Active serial configuration device (EPCS1, EPCS4, EPCS16) —- Now we have tested chip using this tool is: Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25) ; Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4) 3. Support AS, PS and JTAG program ( with Verify and Bank Check function) . —- When we tested the chip above , we use the different program mode: JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000 and Max3000) ; AS ( EPCS1, EPCS4, EPCS16 ) ; PS ( Stratix , Stratix GX ) 4. Embedded logic analyzer function of Signal Tap II 5. Support NIOS II communication and debugger– When you use it to debug your Black Gold , it will not Pop-up warning 6. Faster — about 6 times than Byte blasterII 7. USB interface ! — you don\’t need a PC with serial port now 8. 100% compatible with Official ALTERA USB Blaster Mini USB Blaster Altera Programmer FEATURES: Compatible with Altera USB blaster: USB Blaster Mini Programmer Debugger. CPLD: MAX3000, MAX7000, MAX9000, MAXII… FPGA: Stratix , Stratix II, Stratix III, Stratix IV, Cyclone, Cyclone II, Cyclone III, Cyclone IV, ACES1K, APEX20k, FLEX10K.. Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64… AS, PS and JTAG mode Signal Tap II embedded logic analyzer NIOS II debug* USB interface Quartus II 4.0 and above version Windows XP, windows Vista, Windows 7 and Linux Windows 10. PACKAGE LIST: USB BLASTER Programmer x1 10-Pin JTAG Connection Cable x1 USB cable x1 USB Blaster Mini Programmer. Brand new and high quality. Uses original Altera USB Blaster Mini Programmer. en.wikipedia.org
Programmers & Microcontroller
