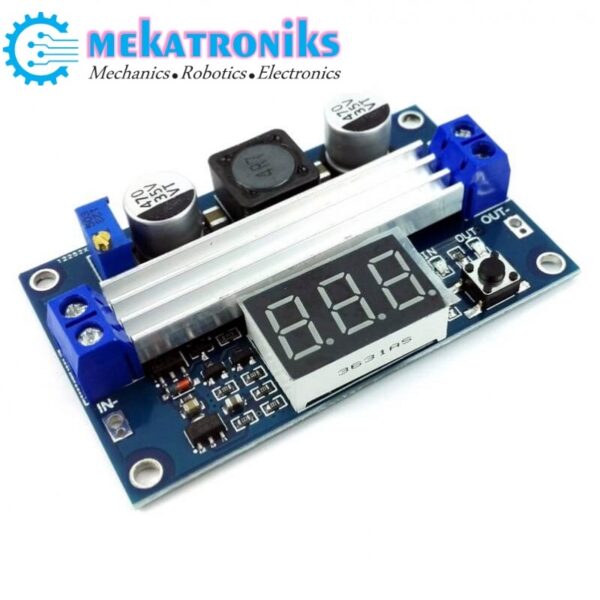

Boost Converter Step up DC to Dc Converter Module 100Watt in Pakistan

LTC1871 Step Up Booster DC to DC Boost Converter Input Voltage: DC 3~35V,Input current: 9A (Max.) Output Voltage: 3.5V~35V ( Adjustable, Boost, output voltage>= input voltage) Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency. LTC1871 Step Up Booster DC to DC Wide Usage: 3.7V lithium battery rises 5V to do mobile power, 7.4V or 12V liter 18 to power the notebook. Output current: 6A (max),Output power: 75W (when the input and output voltages greater than 20V up to 100W) Size: 68x42x14mm, LTC1871 IC with External MOSFET. Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency. Boost voltage to a stable regulate output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher power electronics from a 12V battery, and a wide range of automotive and electronic projects. Constant voltage regulation, not for raw LEDs. Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turn off by another button. Mention states are able to be memorize, is not lost even if the power is disconnect. (On-board mark “IN” LED is turn on, the nixie tube display input voltage value, “OUT” LED bright display is the output voltage value). Output voltage must be greater than input voltage, do not apply reverse polarity voltage, voltmeter works only when input is >= 4V LTC1871 Step Up Booster DC to DC Product Description: Automatic boost module provide a stable power supply. Applicable to unstable voltage source or voltage conversion. Performance parameters: Input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure) Input current:9A (max) Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage) Output current: 6A (max) Output power: 75W (when the input and output voltages greater than 20V up to 128W) Conversion efficiency: 96.4% (max) Voltmeter range: 4 to 40V, error ±0.1V Short circuit protection: yes(limit current 14A). (Note: connect to high-power load, just switch on the impact of current very general meeting current limiting self-locking protection, it is recommend to be switch on firstly, and then access the load). Input reverse polarity protection: None (if require, high current diode in series with the input). Size: 67 * 43 * 12mm (L x W x H) Use manual: Connect load at OUT and OUT- at first. Please note the positive and negative. Connect power supply at IN and IN-.Please note the positive and negative. Press the button to switch the display input or output voltage value. mekatroniks.com en.wikipedia.org
