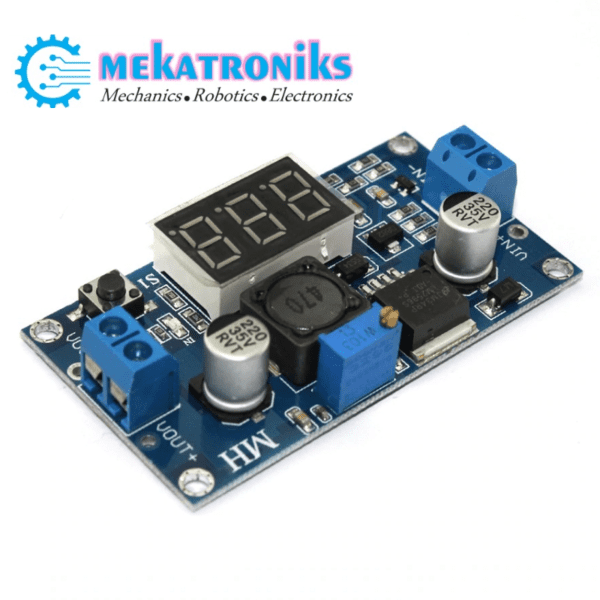

Output ripple: 30mA maximum Load Regulation: ± 0.5% Voltage Regulation: ± 0.5% Dynamic Response speed: 5% 200uS Input voltage:4.75-35V voltage:1.25-26V(Adjustable) current: Rated current is 2A, maximum 3A(Additional heat sink is required) Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency) Rectifier: Non-Synchronous Rectification Module Properties: Non-isolated step-down module (buck) Short Circuit Protection: Current limiting, since the recovery Operating Temperature: Industrial grade (-40 to 85 ) (output power 10W or less) Non-isolated step-down (BUCK) switching regulator. Short circuit protection: Current limiting, self-recovery Potentiometer adjustment direction synchronous rectification Model name: DC-DC LM2596S buck module Input voltage:3.2V~46V (recommended for use in 40V) voltage:1.25V~35V current:3A (maximum) Conversion efficiency:92% (highest) Output ripple:<30mV Switching frequency:65KHz Working temperature:-45 ~ 85en.wikipedia.org Dimension:21mm * 43mm * 14mm (length * width * height) 1x LM2596 DC To Dc Buck Converter Step Down Module Power Supply in Pakistan
