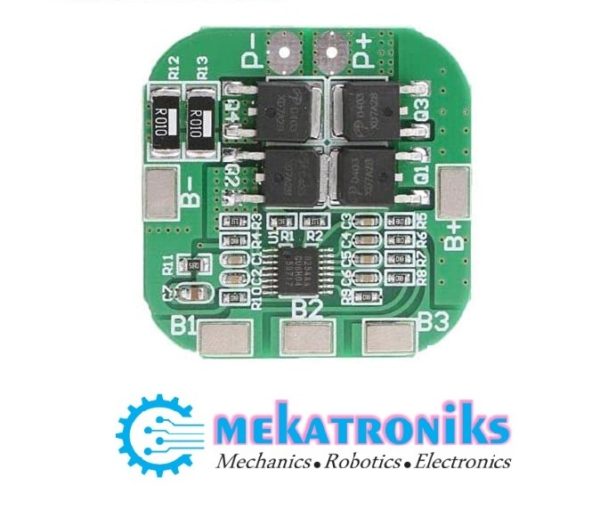

BMS 4S 20A 18650 Lithium Battery Board in Pakistan

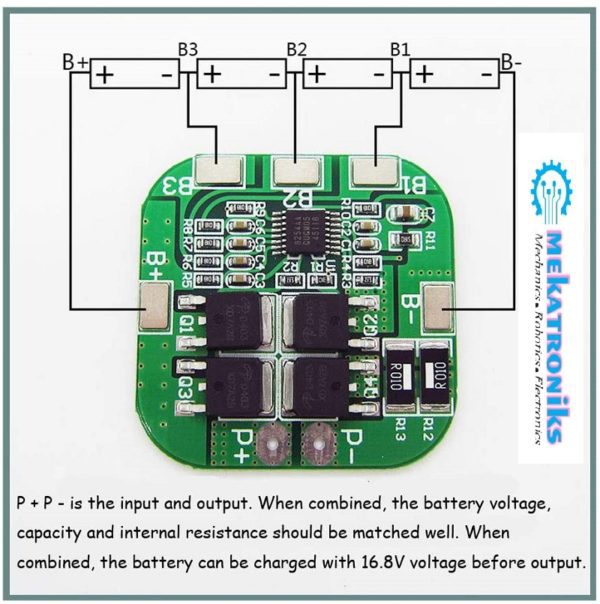

BMS 4S 20A Charging Description: BMS 3S 20A Charging ,18650 Li-ion 18650 BMS PCM Battery Protection Board BMS PCM with Balance for li-ion Lipo Battery in Pakistan. Size: about 56mm*45mm*1.2mm Over voltage range: 4.25-4.35v±0.05v Over discharge voltage range: 2.3-3.0v±0.05v Maximum operating current: 0-25A Maximum transient current: 34-40A Quiescent current: less than 30uA Internal resistance: less than 100mΩ Working temperature: -40— 50° Storage condition: -40– 80° Effective life: more than30000h Short circuit protection: Yes, delayed self recovery Precautions: BMS 3S 25A Charging Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B ), 14.8v (B ) Do not deliberately short circuit. After the line is connected, Need to charge first, then have output. When the battery is connected in series with 4 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use. Do not mix the good battery and the battery. The capacity of the battery internal resistance is closer will be better. Attention: Do not mix the good battery and poor battery to use. The internal resistance of 4 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying BMS 4S 20A Charging About: BMS 4S 20A Charging Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully. Please allow 1-5mm differs due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same Package Included: 1PCS X PCB Protection Board A battery management system (BMS) is any electronic system that manages a rechargeable battery (cell or battery pack) Such as by protecting the battery from operating outside its safe operating area monitoring its state. Calculating secondary data, reporting that data, controlling its environment, authenticating it and / or balancing it. A battery pack built together with a battery management system with an external communication data bus is a smart battery pack. A smart battery pack must be charged by a smart battery charger en.wikipedia.org
