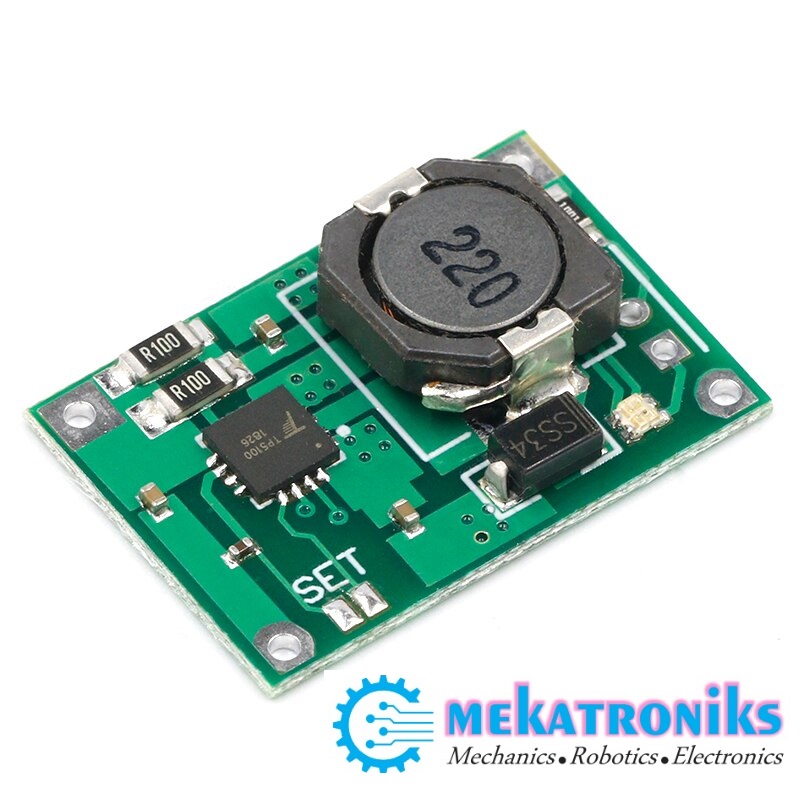

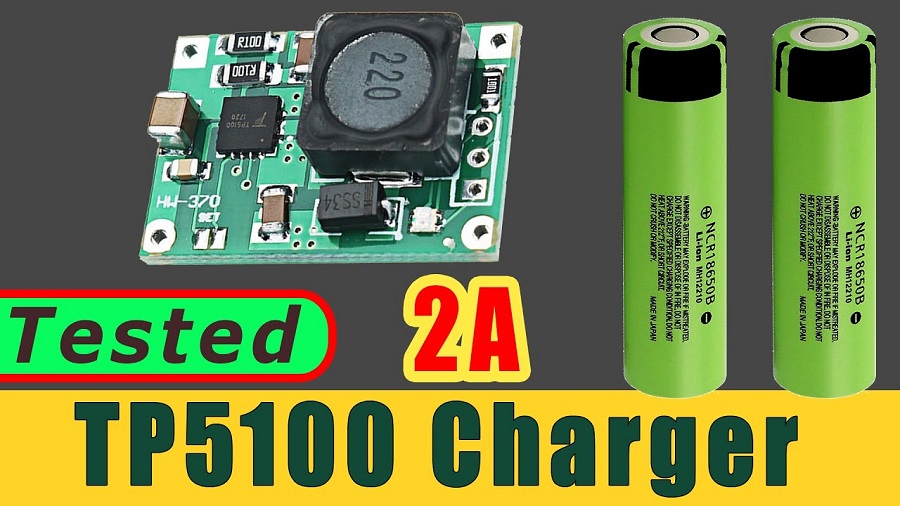

Product Description: Lithium Battery Charger Module18650 TP5100 Lithium Battery Charger Module18650 TP5100 TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection. Features: Lithium Battery Charger Module18650 TP5100 Double 8.4v / 4.2v lithium rechargeable single Programmable charge current. 0. 1A-2A Programmable steady pre charge current 10Percent -100Percent. Wide operating voltage, maximum reach I8V Red and green LED charge status indicator Chip temperature protection, overcurrent protection, under voltage protection Battery temperature protection, reverse battery shutdown, short circuit protection Switching frequency 400Khz, usable inductance 20uH and more PWR_ON Power battery for switching control Maximum Ratings: Static input supply voltage (VlN): 20V BAI: -8.4V-20V BAT Short-Circuit Duration: Continuous Operating environment Temperature range: -40 ° -85 ° Storage temperature range: -65 ° – 125 ° Double single lithium battery charge management lithium charging board TP5100 4.2v 8.4v ; Input voltage: 5-18V DC power supply (actual 5-12V is appropriate) TP5100 built-in input overcurrent, under voltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection TP5100 programmable charge current 0. 1A-2A; Programmable steady pre charge current 10Percent -100Percent Wide operating voltage 5V-18V, dual battery trickle charge into pre-charge, constant current, constant voltage three phase; red and green LED charge status indicator TP5100 charging management power supply module suitable for portable devices, various chargers, smart phones, tablets, power tools, walkie-talkies, etc.
