ESP-12E ESP-12F ESP8266 Remote Serial Port WIFI Module Arduino

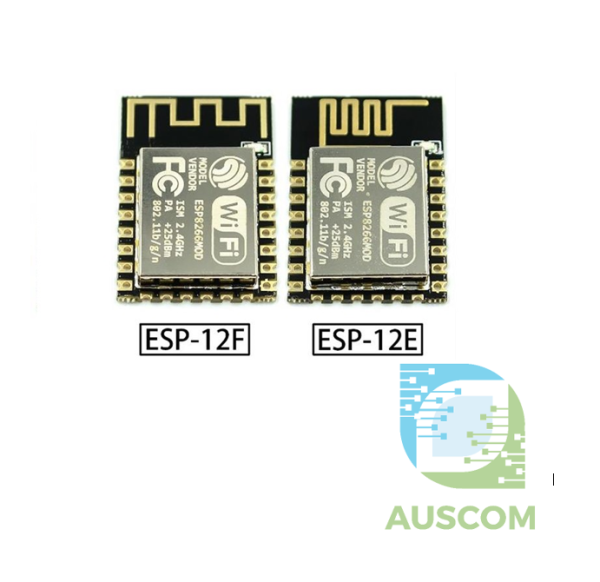

Description Revolutionize your Arduino projects with the ESP-12E/ESP-12F ESP8266 Remote Serial Port WiFi Module! Type: ESP-12F/ESP-12E Certifications: FCC / CE / TELEC Wireless Standards: 802.11 b/g/n Frequency Range: 2.4GHz-2.5GHz (2400M-2483.5M) Data Interfaces: UART / HSPI / I2C / I2S / IR Remote Control GPIO / PWM Voltage Range: 3.0 ~ 3.6V (recommended: 3.3V) Current Consumption: Average: 80mA Operating Temperature: -40°C ~ 125°C Storage Temperature: Normal Temperature Unlock the potential of your next Arduino endeavor with this budget-friendly microcontroller module, seamlessly integrated with Wi-Fi capabilities! A part of the ESP8266 series, this module represents a pinnacle in wireless System On a Chip (SOC) technology. Perfectly tailored for minimal space requirements, it provides a comprehensive standalone Wi-Fi networking solution at an unparalleled cost efficiency. Whether hosting applications or delegating Wi-Fi networking functions, this module shines. Boasting an embedded PCB antenna and 9 GPIOs plus ADC, it’s an ideal fusion of versatility and compactness. A step above its predecessor, the ESP-12F builds on the ESP-12E, flaunting 22 pins and an enhanced antenna design that bolsters communication range by 30% to 50% compared to its 16-pin counterpart. This FCC, CE, and RoHS certified marvel remains fully compatible with earlier editions of the ESP-12 series. Pinpointing the Ideal Configuration: RST: Reset the module ADC: A/D Conversion result, voltage range 0-1V, scale: 0-1024 EN: Chip enable pin, active in high state GPIO16: Wake chipset from deep sleep mode GPIO14: HSPI_CLK GPIO12: HSPI_MISO GPIO13: HSPI_MOSI, UART0_CTS VCC: 3.3V power supply (VDD) CS0: Chip selection MISO: Slave output main input IO9: GPIO9 IO10: GPIO10 MOSI: Main output slave input SCLK: Clock GND: Ground GPIO15: MTDO, HSPICS, UART0_RTS GPIO2: UART1_TXD GPIO0 GPIO4 GPIO5 RXD: UART0_RXD, GPIO3 TXD: UART0_TXD, GPIO1 Enriching Features: 802.11 b/g/n support Integrated 32-bit low-power MCU Built-in 10-bit ADC Comprehensive TCP/IP protocol stack Onboard TR switch, balun, LNA, power amplifier, and matching network Inclusive PLL, regulators, and power management units Antenna diversity support Wi-Fi 2.4GHz, WPA/WPA2 compatibility Modes: STA/AP/STA AP Seamless Smart Link Function for Android and iOS Versatility: SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO Advanced configurations: STBC, 1×1 MIMO, 2×1 MIMO, A-MPDU & A-MSDU aggregation, 0.4s guard interval Ultra-low power consumption: <10uA in deep sleep, <5uA power down leakage Rapid wake-up and packet transmission in <2ms Standby power use <1.0mW (DTIM3) 20dBm output power in 802.11b mode Operating temperature range: -40°C ~ 125°C FCC, CE, and RoHS certified Vital Specifications: Wi-Fi Essentials Certificates: FCC/CE/RoHS Wi-Fi Protocols: 802.11 b/g/n Frequency Spectrum: 2.4GHz-2.5GHz (2400M-2483.5M) Hardware Highlights Peripheral Bus: UART/HSPI/I2C/I2S/IR Remote Control, GPIO/PWM Power Range: 3.0~3.6V Operating Current: Averaging 80mA Temperature Range: Operating: -40°C~125°C, Ambient: Normal Temperature Dimensions: 16mm x 24mm x 3mm Software Excellence Wi-Fi Modes: Station/SoftAP/SoftAP Station Security: WPA/WPA2, Encryption: WEP/TKIP/AES Firmware Upgrades: UART Download / OTA (via network) / Host-assisted firmware downloads Software Development: Cloud Server Development Support / SDK for customized firmware Network Protocols: IPv4, TCP/UDP/HTTP/FTP User Configuration: AT Instruction Set, Cloud Server Integration, Android/iOS App Compatibility Package Contents: 1x ESP8266 ESP-12E/F WiFi Module Unleash the ESP-12E/ESP-12F ESP8266 WiFi Module and transform your Arduino creations into connected wonders!
