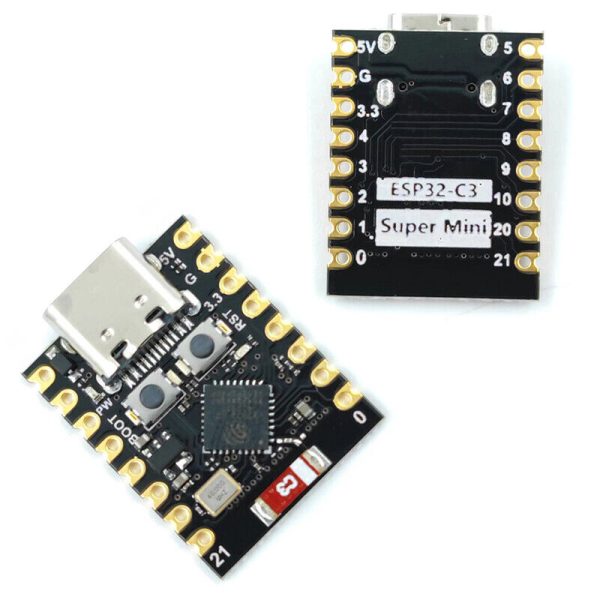

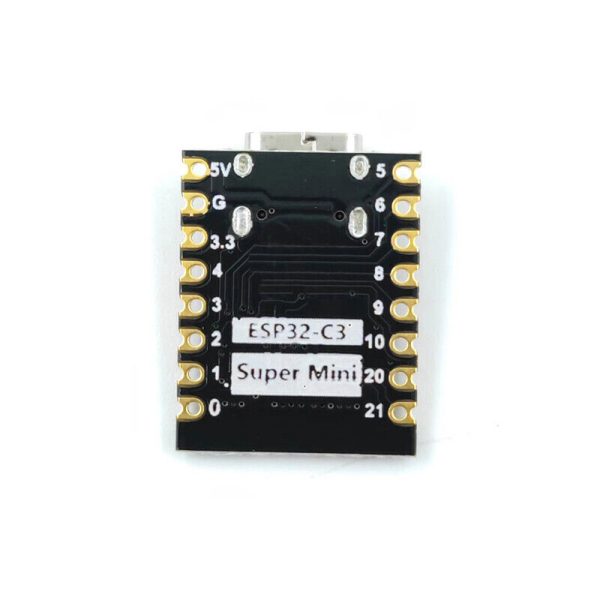

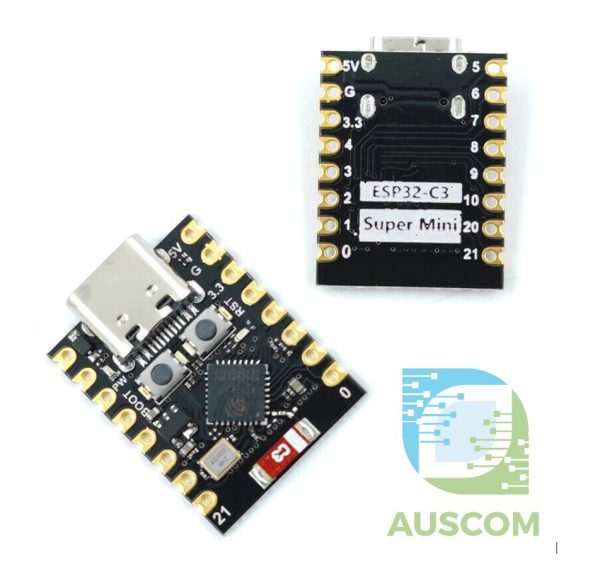

ESP32-C3 Super Mini Development Board RISC-V WiFi Bluetooth 5.0

Description �� ESP32-C3 Super Mini Development Board – RISC-V WiFi Bluetooth 5.0 | AuscomTech The ESP32-C3 Super Mini is an ultra-compact IoT development board based on the Espressif ESP32-C3FN4 WiFi & Bluetooth dual-mode chip.Built around a 32-bit RISC-V single-core CPU with FPU, it delivers strong performance, modern security features, and extremely low power consumption in a thumb-sized form factor. With 2.4GHz WiFi, Bluetooth 5.0 (LE), and an external antenna for improved RF performance, this board is ideal for low-power IoT devices, wearable electronics, and space-constrained embedded projects. ⭐ Key Features �� WiFi Bluetooth 5.0 (LE)Supports IEEE 802.11 b/g/n (2.4GHz) WiFi and Bluetooth Low Energy for reliable wireless connectivity. �� RISC-V 32-bit Processor with FPUESP32-C3 single-core RISC-V CPU running up to 160 MHz, capable of floating-point operations. ⚡ Ultra-Low Power DesignDeep sleep current of approximately 43 µA, ideal for battery-powered and wearable devices. �� Ultra-Compact Super Mini Form FactorSmall PCB size 22.52 × 18 mm, suitable for tight enclosures and mini projects. �� Advanced Hardware SecurityIntegrated cryptographic accelerator supporting AES-128/256, RSA, HMAC, hashing, digital signatures, secure boot, and TZT. �� Rich I/O Interfaces11 GPIOs (PWM capable), 4 ADC inputs, UART, SPI, and I2C interfaces for flexible expansion. �� Developer-Friendly LayoutOn-board blue LED (GPIO8), RESET button, and BOOT button simplify programming and debugging. �� Technical Specifications Specification Details Chip Model ESP32-C3FN4 CPU 32-bit RISC-V single-core with FPU Clock Speed Up to 160 MHz WiFi 802.11 b/g/n (2.4GHz) Bluetooth Bluetooth 5.0 (LE) SRAM 400 KB ROM 384 KB Flash 4 MB (on-chip) GPIO 11 (PWM supported) ADC 4 channels Interfaces UART, SPI, I2C Security AES-128/256, RSA, HMAC, Secure Boot Deep Sleep Current ~43 µA On-Board LED Blue LED (GPIO8) Dimensions 22.52 × 18 mm Mounting Single-sided SMD design �� Compatible With • Arduino IDE (ESP32 board support package)• ESP-IDF• PlatformIO• USB-to-UART programmers• Sensors, relays, displays, and low-power peripherals• Custom IoT and wearable firmware ⚙️ Typical Applications • IoT smart devices• Wearable electronics• Battery-powered sensor nodes• Wireless data loggers• Smart home automation• Compact robotics & control systems• RISC-V learning and development projects �� Package Includes • 1 × ESP32-C3 Super Mini Development Board
