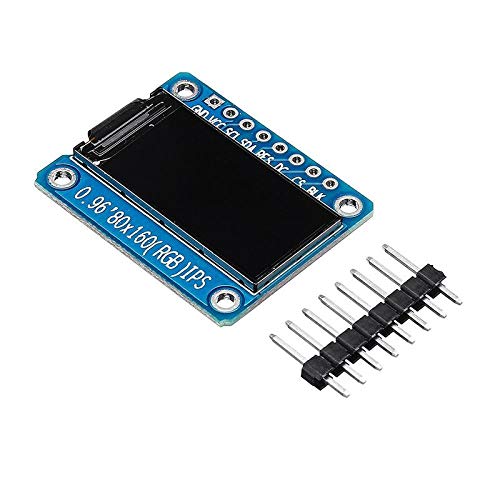

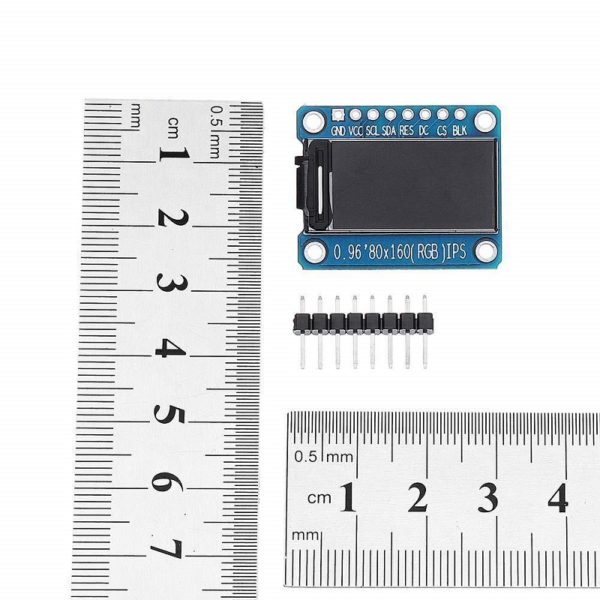

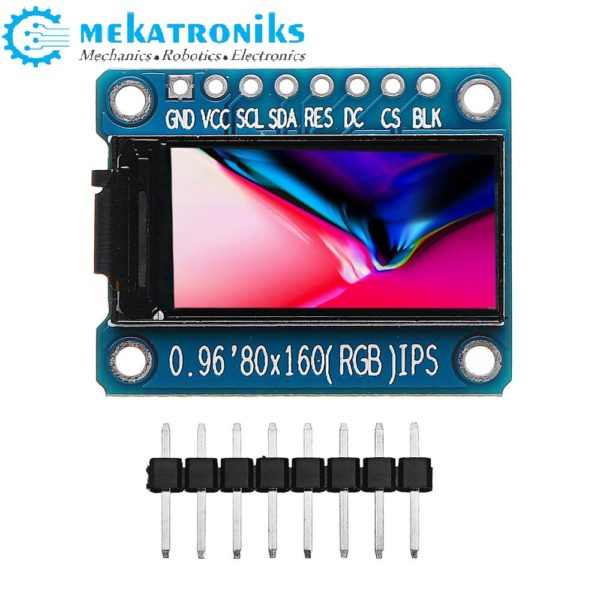

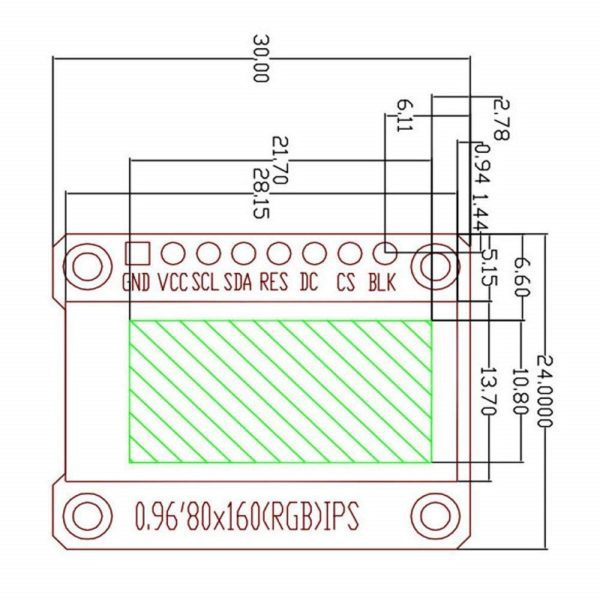

0.96 TFT Display IPS Description Feature: Size: 0.96 Inch Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen Resolution: 80*160 display, direction can adjust horizontal screen vertical screen Control chip: ST7735 Display area: 10.8 x 21.696mm Physical size: 24 x 30mm Interface type: SPI interface Number of pins: 7 Display color: 65K full color Working temperature: -20~70°C Working voltage: 3.3V Net weight: 5g Interface definition: 1> GND (Power ground) 2> VCC (Power 3.3) 3> SCL (SPI clock line) 4> SDA (SPI data line) 5> RES (LCD reset, LCD needs to be reset once after power-on) 6> DC (SPI data/command selection pin) 7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight)
