IIC/I2C 16 Pin Serial Interface LCD Display Adapter Module

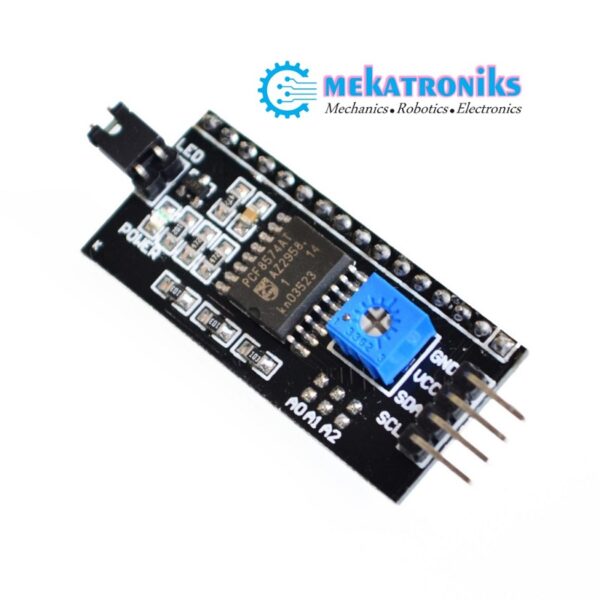

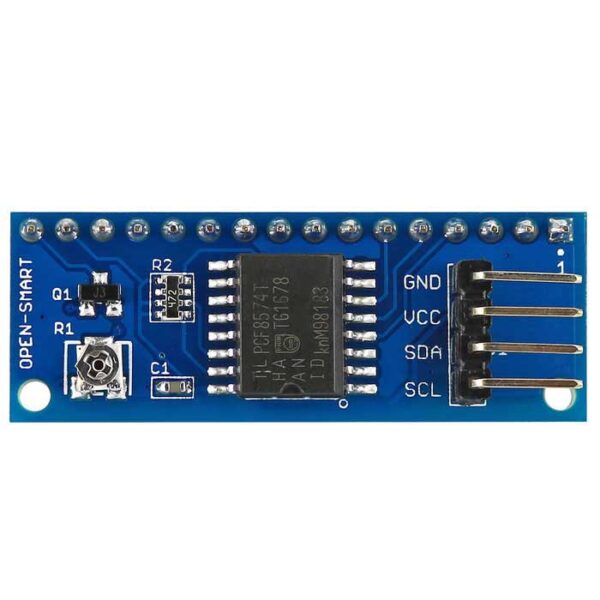

IIC/I2C interface Adapter Board Description This standard blue backlight HD44780 LCD is great for your Arduino projects IIC/I2C interface Adapter Board LCD Display Adapter Module. It supports 16 characters wide and 2 rows in white text on blue background. As the pin resources of Arduino microcontrollers is limit, your may be not able to use normal LCD shield after connect with a certain quantity of sensors or SD card. However, the I2C serial interface only take 2 wires to realize data display. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too. This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provide on the board. This allows up to 3 LCD displays to be control via a single I2C bus (giving each one it’s own address) IIC/I2C interface Adapter Board About: Communicate on a 2-wire I2C bus The API is compatible with the current character LCD component A single component may drive one or more LCDs on the same I 2C bus The I2C LCD can coexist on an existing I2C bus if the PSoC is the I2C master Support for the NXP PCF2119x command format Compatible with Arduino Board or other controller board with I2C bus. Display Type: Negative white on Blue backlight. I2C Address:0x38-0x3F (0x3F default) Supply voltage: 5Ven.wikipedia.org Interface: I2C to 4bits LCD data and control lines. Contrast Adjustment: built-in Potentiometer. Backlight Control: Firmware or jumper wire. Categories: Arduino & Components, Arduino Sensors, Display, LCD Tags: i2C, I2c Module, IIC/I2C, Serial Interface Board, SPI
