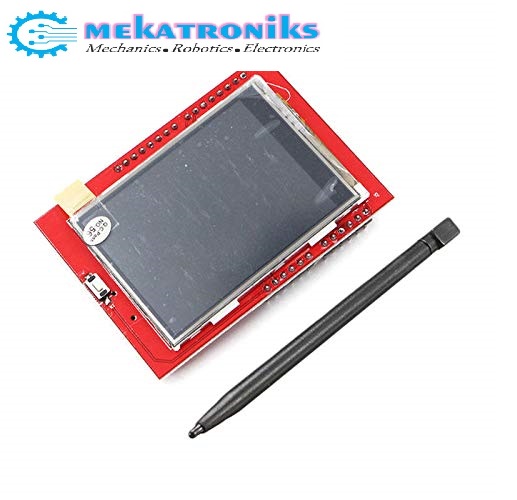

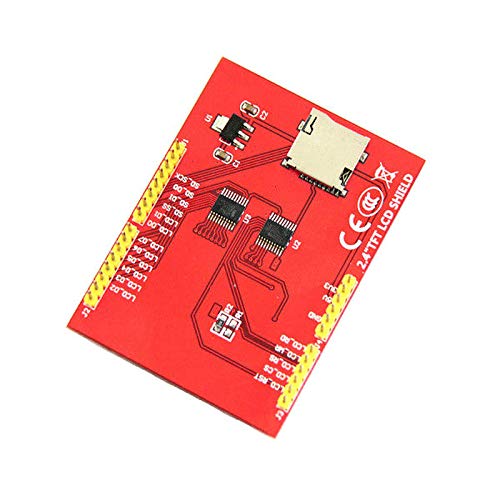

Product Description: 2.4″ SPI TFT LCD Display Touch Panel LCD 240×320 5V 3.3V with Pen Colorful, 18-bit 262,000 different shades 4-wire resistive touchscreen 240 x 320 resolution Spfd5408 controller with built in video RAM buffer 8 bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD 5V compatible, use with 3.3V or 5V logic Size: 71 x 52 x 7mm Features about this Product: 2.4″ SPI TFT LCD Display Touch Panel LCD 240×320 5V 3.3V Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring 320X240 resolution, clear display, support for touch function Support 16-bit RGB 65K color display, display rich colors 8-bit parallel bus, faster than serial SPI refresh On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage Easy to expand the experiment with SD card slot Provides an Arduino library with a rich sample program Military-grade process standards, long-term stable work Name Parameter Display Color RGB 65K color SKU MAR2406 Screen Size 2.4(inch) Type TFT Driver IC ILI9341 Resolution 320*240 (Pixel) Module Interface 8-bit parallel interface Active Area 48.96*36.72(mm) Module PCB Size 72.20*52.7(mm) Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operating Voltage 5V/3.3V Power Consumption TBD Product Weight(Package containing) 39(g)
