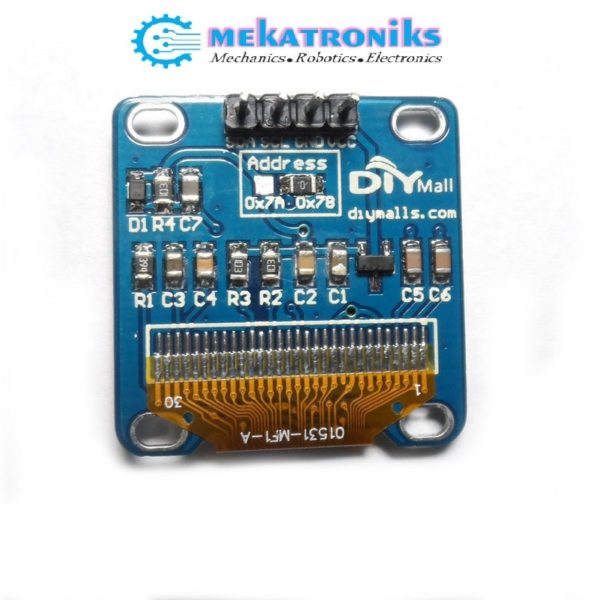

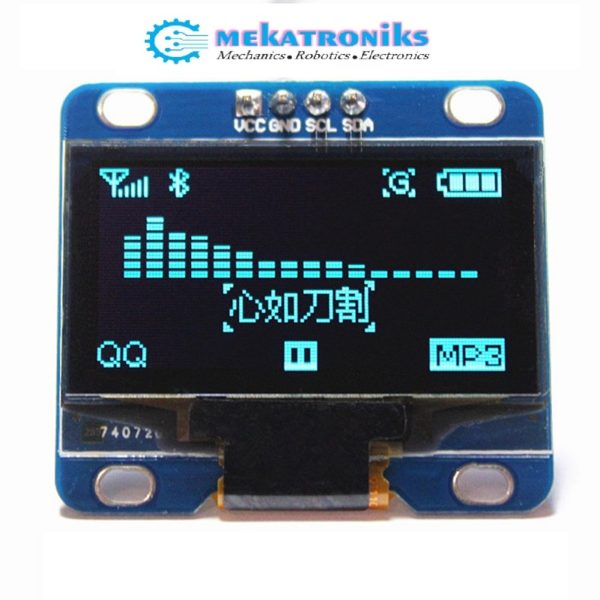

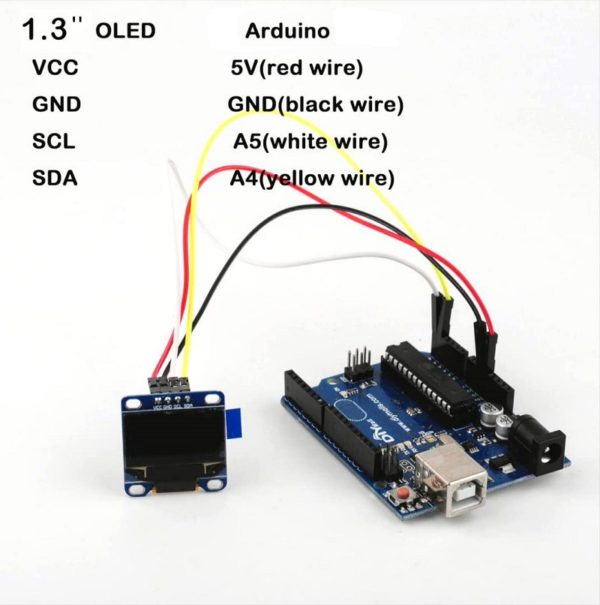

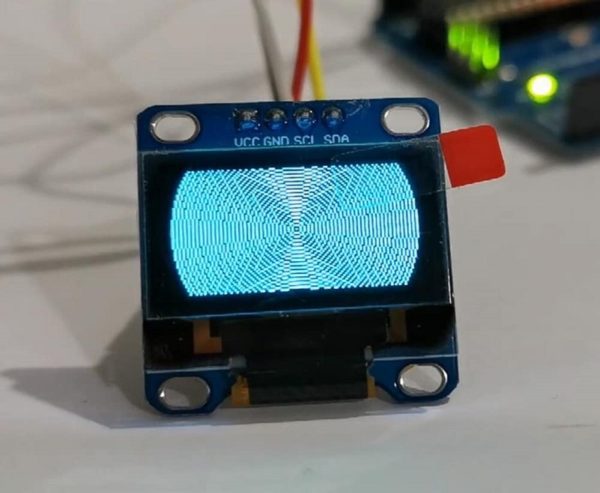

Product Description: : 1.3 Oled i2c Display Size: 1.3 inches Resolution: 128X64 Color: White Viewing angle: greater than 160 degrees Supported platforms: for Arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC Working temperature: -30-80 degrees Volume: 27MM * 27MM * 4.1MM Driver IC: SH1106 Communication: IIC, only two I / O ports No font: The software takes word modulo Backlight: OLED self light, no backlight This OLED display module is small, only 1.3″ inch diagonal, it is made of 128×64 individual blue OLED pixels, each one is turn on or off by the controller chip. It has white backlight and can work without backlight, OLED display is higher compared to that of LCD display, you will like the miniature for its crispness. This module uses I2C to communicate with microcontroller such as Arduino. 1.3 Inch 128×64 IIC I2C OLED Blue Display Module For Arduino The 1.3″ OLED display is a perfect ultra-small display. It is an OLED monochrome 128×64 dot matrix display module with I2C Interface. The characteristics of this 1.3 inch oled display module are high brightness, high contrast ratio, self-emission, slim outline, wide temperature range, wide viewing angle, and low power consumption. Interface: 1.3 Oled i2c Display VCC: 3.3-5V GND: Ground SCL: Serial Clock SDA: Serial Data Note: This kit requires certain professional knowledge and ability, please make sure you know how to wire and use it. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
