DIN Rail 0-10V 4-20mA Analog Signal Isolator Splitter Convert

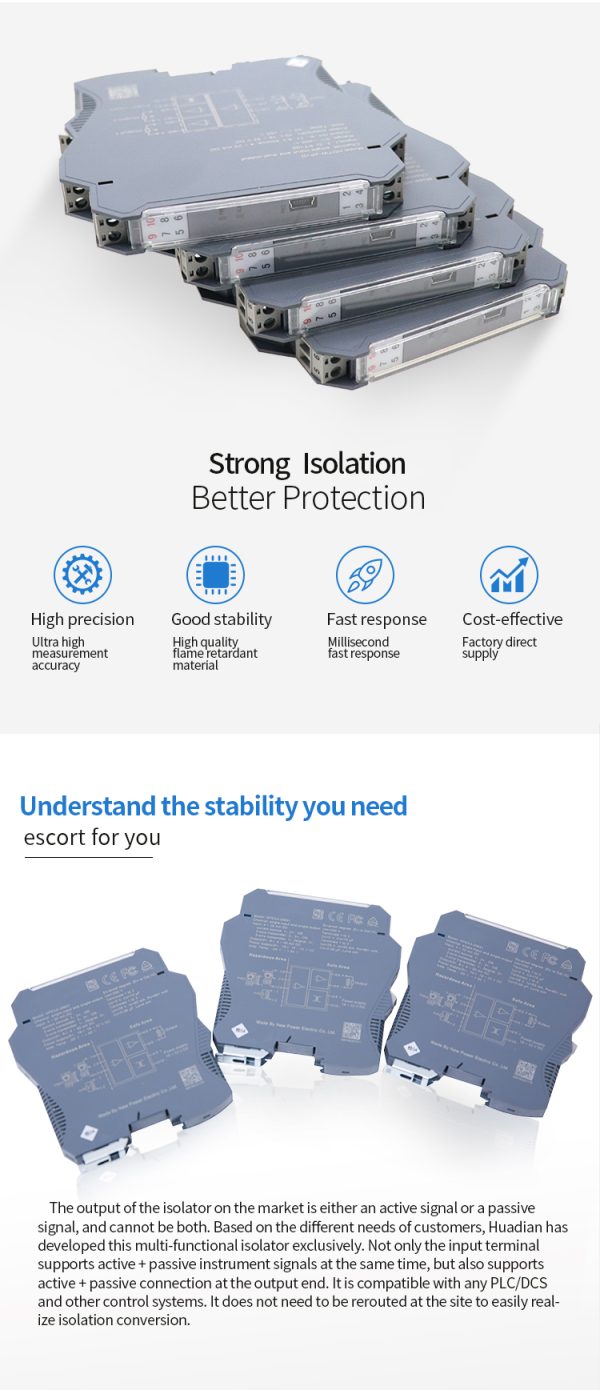

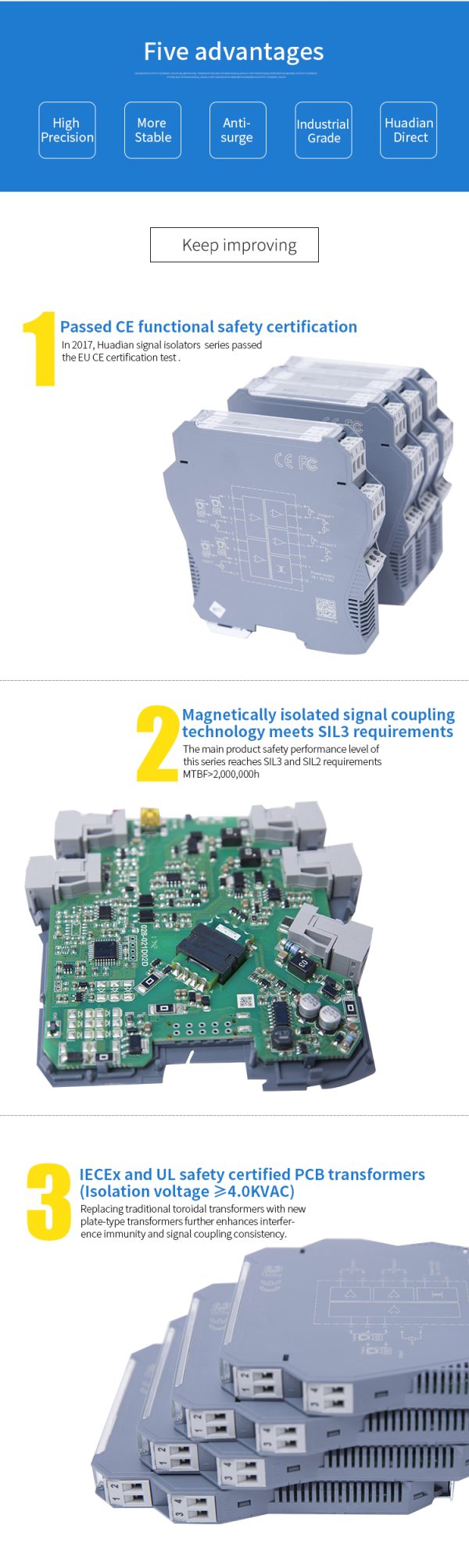

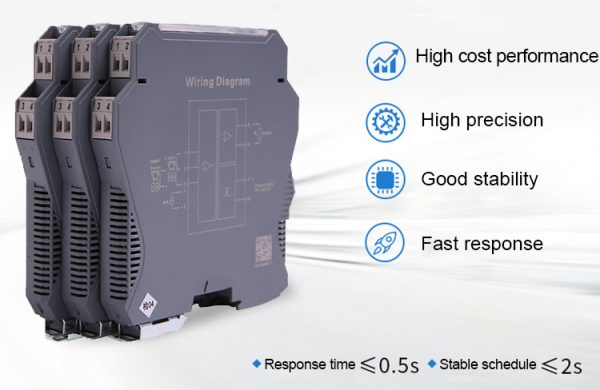

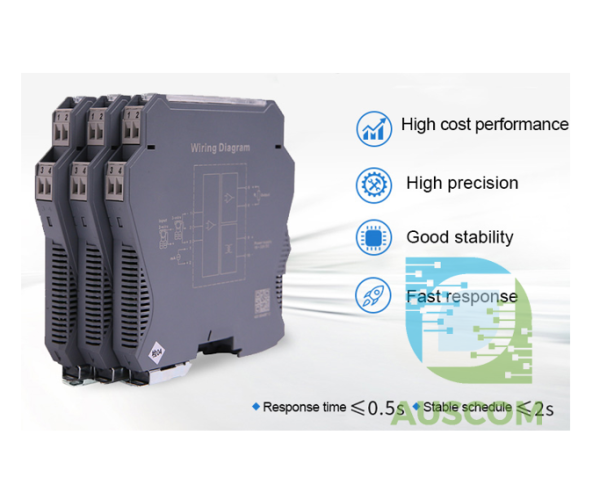

Description ⚡ 0–10V / 0–5V / 4–20mA Analog Signal Isolator & Splitter Converter (DIN Rail) | AuscomTech The Analog Signal Isolator & Splitter Converter is an industrial-grade signal conditioning module designed to convert, isolate, and distribute standard analog signals in PLC, DCS, SCADA, and automation systems.It supports common voltage and current signals and allows one input to be safely split into multiple identical outputs, while maintaining excellent accuracy, stability, and electrical isolation. This unit is ideal for environments where signal integrity, noise immunity, and system protection are critical. ⭐ Key Features �� Signal Conversion & DistributionSupports industry-standard analog signals: Inputs: 0–10V, 0–5V, 4–20mA Outputs: 0–10V, 0–5V, 4–20mA Available configurations (model-dependent): 1-in / 1-out 1-in / 2-out 1-in / 4-out 2-in / 2-out �� Full Galvanic IsolationComplete electrical isolation between input, output, and power supply, improving: Noise immunity EMC performance System safety and reliability ⚡ High Accuracy & Stability Accuracy: ±0.1% F.S. @ 25°C Low ripple: <1 mV Excellent temperature stability for long-term industrial use ⏱️ Fast Dynamic Response Rise time: ≤0.2 ms Settling time: ≤2 ms Frequency range: 0–300 Hz Ideal for real-time control and monitoring loops. �� Supports 2-Wire & 3-Wire Transmitters Provides isolated excitation power for field transmitters, simplifying wiring and improving system flexibility. �� DIN Rail Mount Design Compact housing for 35mm DIN rail, ideal for control cabinets, MCC panels, and instrumentation enclosures. �� Status LED Indicators Green (PWR): Normal operation Red (ALM): Input fault or over-range condition �� Technical Specifications Input Signal Types: 0–5V, 0–10V, 4–20mA Input Resistance: Current: ≤60 Ω Voltage 0–5V: ≥1 MΩ Voltage 0–10V: ≥2 MΩ Output Current: 0–10mA, 4–20mA, ±10mA Voltage: 0–5V, 1–5V, 0–10V Load Capacity Current output: 0–10mA: ≤700 Ω 4–20mA: ≤350 Ω ±10mA: ≤1 kΩ Voltage output: 0–5V: ≥1 MΩ 0–10V: ≥2 MΩ Performance Accuracy: ±0.1% F.S. Frequency Response: 0–300 Hz Ripple: <1 mV Power Supply DC: 18–32V DC (24VDC recommended) AC/DC: 85–265V AC or 120–360V DC (model dependent) Power Consumption Single output: 24VDC: 0.4W 220VAC: 1.0VA Dual output: 24VDC: 0.6W 220VAC: 1.2VA Isolation & Safety Insulation Resistance: ≥100 MΩ Dielectric Strength: ≥1500 VAC (1 min) EMC Compliance: IEC 61000-4 series �� Compatible With PLC analog input/output modules DCS and SCADA systems Industrial HMIs Process instrumentation Flow, pressure, and level transmitters Data acquisition systems �� Typical Applications Analog signal splitting for PLC inputs Voltage-to-current or current-to-voltage conversion Process control and automation Industrial signal isolation and conditioning Noise suppression in mixed-signal environments Redundant monitoring systems ⚠️ Important Notes Configuration (I/O count, signal type, power supply) is model-dependent Output load capacity and power options can be specified on request Ensure correct signal type selection before installation �� Package Includes 1 × DIN Rail Analog Signal Isolator & Splitter Converter
