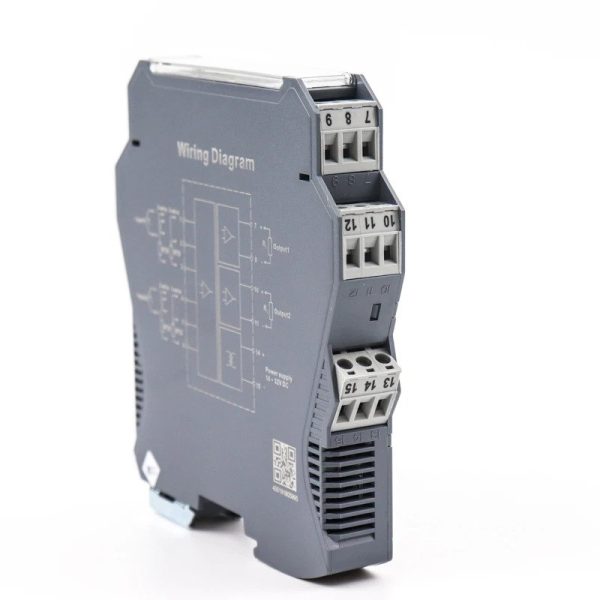

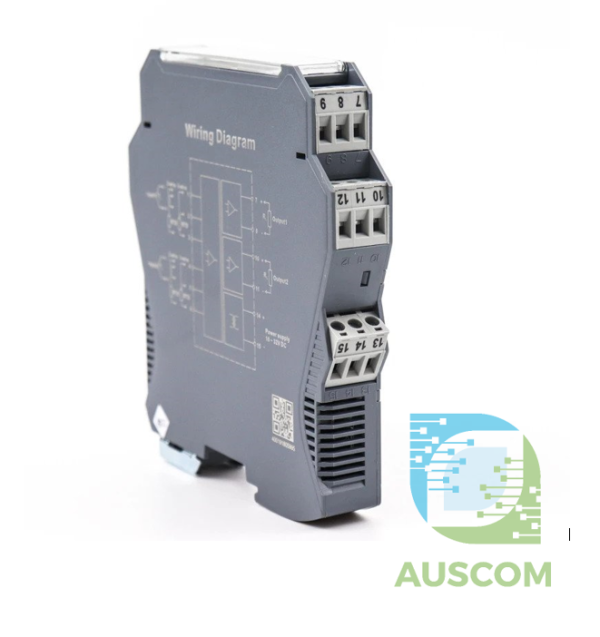

DIN Rail RTD PT100 Temperature Transmitter 4–20mA 0–10V Converter

Description ��️ DIN Rail Temperature Transmitter – RTD PT100 to 4–20mA / 0–5V / 0–10V Signal Converter | AuscomTech The DIN Rail Programmable Temperature Transmitter is an industrial-grade signal conditioning module designed to convert RTD temperature inputs into standard analog outputs for PLC, DCS, SCADA, and automation systems.This unit provides high-accuracy temperature measurement, galvanic isolation, and flexible output options, making it ideal for demanding industrial environments where signal integrity and reliability are critical. This listing focuses on the RTD PT100 variant, which is the most commonly used configuration in industrial temperature monitoring. ⭐ Key Features ��️ RTD Temperature Input (PT100)Designed for precise temperature measurement using PT100 RTD sensors.(Other RTD types and thermocouple variants are available by order.) �� Multiple Analog Output OptionsSelectable industry-standard outputs: 4–20mA 0–5V 0–10V �� Full Galvanic IsolationElectrical isolation between input, output, and power supply improves noise immunity, safety, and system stability. ⚡ High Accuracy & Stability Accuracy: ±0.1% F.S. @ 25°C Low temperature drift: <30 ppm/°C Output ripple: <1 mV ⏱️ Fast Response Performance Rise time: ≤1 ms Settling time: ≤200 ms �� DIN Rail MountingCompact housing designed for standard 35mm DIN rail, ideal for control cabinets and industrial panels. �� Status LED Indicators Green (PWR): Normal operation Red (ALM): Fault or over-range indication ��️ Flexible Configuration OptionsSupports single or multiple input/output configurations depending on model variant. �� Technical Specifications Input Sensor Type: RTD PT100 Input Resistance (RTD): ≤60 Ω Cold Junction Compensation: −20°C to 60°C CJC Accuracy: ±1°C (after 10 min warm-up) Outputs Current: 4–20mA Voltage: 0–5V / 0–10V Load Resistance: Current output: ≤250 Ω (typical) Voltage output: ≥1 MΩ (0–5V), ≥2 MΩ (0–10V) Performance Accuracy: ±0.1% F.S. Frequency Response: 0–300 Hz Response Time: ≤200 ms Temperature Drift: <30 ppm/°C Power Supply DC: 18–32V DC (24VDC recommended) AC/DC option: 85–265V AC/DC (model dependent) Power Consumption: Low power design Isolation & Safety Insulation Resistance: >100 MΩ Dielectric Strength: ≥2500 VAC (1 min, 1 mA leakage) EMC Compliance: IEC 61000-4 series �� Compatible With • PLC and DCS systems• SCADA platforms• Industrial HMIs• Process control systems• Data logging equipment• HVAC and building automation �� Typical Applications • Industrial temperature monitoring• Process control loops• PLC analog input conditioning• HVAC temperature measurement• Energy and utilities monitoring• Manufacturing and automation systems ⚠️ Important Notes • This listing covers the RTD PT100 version• Other RTD types (PT1000, Cu50, Cu100) and thermocouple versions are available by order• Ensure correct power supply and output configuration before installation �� Package Includes • 1 × DIN Rail RTD Temperature Transmitter (PT100)
